What Is a Motor Control Centre (MCC) and Why It’s Essential for Large HVAC Systems in UAE Buildings

30 Second Summary

• A Motor Control Centre (MCC) is the central hub for managing and protecting the numerous motors used in large HVAC (Heating, Ventilation, and Air Conditioning) systems, particularly in the UAE's high-demand environment.
• MCCs are essential for the reliable, safe, and efficient operation of vital HVAC components like chiller pumps, air handling units (AHUs), and cooling towers in massive UAE structures.
• They consolidate all motor starters, circuit protection accessories, and control circuitry into one organized unit, simplifying installation, maintenance, and troubleshooting.
• Integrating an electrical motor control center ensures compliance with stringent safety standards while delivering the energy efficiency crucial for combating the extreme heat, making them indispensable for modern, large-scale construction projects.

The Silent Powerhouse: Understanding What Is a Motor Control Centre (MCC)

The desert sun is unforgiving. Cooling large buildings in the UAE isn't a luxury; it’s a necessity. This massive cooling demand relies on powerful HVAC systems. Those systems, in turn, rely on countless motors. Think chiller pumps, fans, and air handling units (AHUs). Managing all these motors is a monumental task. That’s where the Motor Control Centre (MCC) comes in.

What is motor control centre? Simply put, it's a centralized assembly. It houses motor starters, control circuits, and overcurrent protection. All are contained within one or more metal enclosures. It’s the mission control for every motor in your building's critical infrastructure. This consolidation is not just about neatness. It’s about safety, reliability, and efficiency. Every complex operation needs a central command. The MCC is the command center for your HVAC motors.

2. Why the UAE's Mega-Structures Demand Robust Motor Control

The UAE is home to some of the world's most impressive and largest structures. These skyscrapers, malls, and data centers have immense cooling loads. Imagine a single major shopping center. It might have hundreds of motors operating simultaneously. They run 24/7 in high ambient temperatures. Failure of even a few critical motors can cause major disruption. This is where a robust motor control center becomes indispensable.

MCCs provide the organization needed resources to manage this complexity. They ensure that motors start correctly. They protect them from damaging conditions like overloads or short circuits. According to a 2023 report on energy use, HVAC systems account for over 50% of the total electricity consumption in commercial buildings in the UAE. Maximizing the efficiency and lifespan of these motors is thus a top financial priority. A well-designed electrical motor control center directly contributes to this goal. It minimizes downtime. It maximizes operational life. That's a huge return on investment.

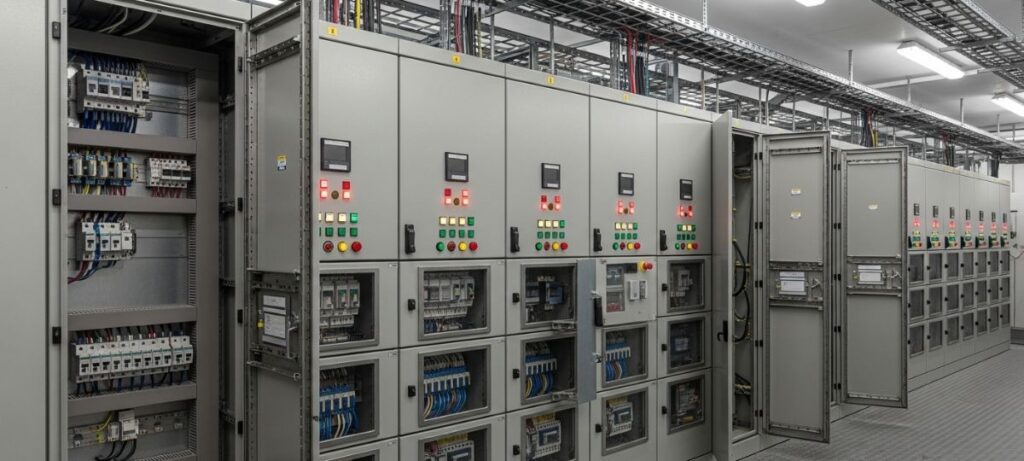

3. The Heart of the System: Key Components of an MCC

To truly understand what is an MCC, you must know its internal architecture. The MCC is not one single device. It's an assembly of crucial components, each serving a vital function.

• Vertical Sections: These are the large metal compartments that form the main structure. They can be interconnected to expand the system.
• Horizontal and Vertical Busbars: These are the conductors that distribute power throughout the MCC. The main horizontal bus carries the bulk power. The vertical bus distributes it to each unit.
• MCC Buckets (Starter Units): These are the removable drawers housing the components for a single motor. More on these later!

4. Beyond Basics: Essential Features of a World-Class Electrical MCC

Not all MCCs are created equal. In the demanding UAE environment, specific features move an MCC from standard to essential. Modern electrical mcc units are engineered for extreme performance.

One key feature is the separation of power and control wiring. This prevents electrical noise from the power circuits from interfering with sensitive control signals. Another critical element is the use of high-quality low voltage switchgear components. These include robust contactors, relays, and starters designed for frequent cycling, a common requirement in large HVAC plants.

5. Safety First: How MCCs Protect Personnel and Equipment

Safety is non-negotiable in any large industrial or commercial setting. The MCC plays a central role in maintaining both personnel and equipment safety. They are designed with arc-flash mitigation in mind. This phenomenon, a sudden release of energy due to an electrical fault, can be devastating.

MCCs employ features like compartmentalized construction. This isolates faults and prevents them from propagating to adjacent sections. Furthermore, every mcc in electrical systems must be easily maintainable. This is where features like racking mechanisms for breakers and shutters for busbar contacts come into play. They protect maintenance personnel from accidental contact with live components during servicing.

6. Unlocking Efficiency: The Economic Case for Motor Control Centres

In the UAE, energy costs, although subsidized, remain a significant factor in operating expenses. The efficient management of HVAC motors directly translates into significant cost savings. This is a core benefit of a modern motor control centre.

Today's MCCs integrate Variable Frequency Drives (VFDs). Instead of just running motors at full speed or off (a colossal waste of energy), VFDs adjust the motor speed. They modulate it precisely to meet the actual cooling load demand. If only 60% cooling is needed, the motor runs at 60% speed. This is governed by the command signals processed through the MCC. This proportional control dramatically reduces electricity consumption. A well-designed VFD section within the MCC can reduce a building's total energy bill by a measurable percentage. This makes the MCC not just a control device, but a powerful financial tool.

7. The Strategic Advantage: Why Experts Choose Specific Motor Control Center Manufacturers

When a major project, like a new airport terminal or a high-rise residential complex, iis underway, the choice of equipment is strategic. Facility managers and engineers don't just pick any supplier. They look for proven motor control center manufacturers. These manufacturers offer units designed to withstand the region’s specific challenges: high heat, dust ingress, and humidity.

Manufacturers with a global reputation often adhere to stringent international standards, such as IEC (International Electrotechnical Commission) or UL (Underwriters Laboratories). This assures quality and safety. Furthermore, reputable motor control center suppliers offer extensive local support. This includes spare parts availability and technical assistance. Choosing a trusted manufacturer ensures the longevity of the system. It also guarantees access to the latest smart technologies and integration features. Quality over cost often proves to be the most economical choice in the long run.

Conclusion

We’ve fully explored what a Motor Control Centre (MCC) is. It’s more than just a metal box; it is the vital nervous system powering the essential HVAC infrastructure of the UAE's modern buildings. The MCC provides central management, robust protection, and crucial energy efficiency required for reliable operation in an extremely challenging climate. It safeguards expensive motors from overload, enables sophisticated variable speed control, and ensures smooth power distribution through electrical cables, making it a critical component in large-scale buildings. Without a world-class MCC, no building could operate reliably or cost-effectively, especially in such a demanding environment.

For expert design, reliable manufacturing, and seamless installation of your Motor Control Centre, look no further than Goswitchgear. Contact us today for customized solutions that meet your unique needs.

FAQs

What is the primary function of an MCC in a commercial building?

The primary function is to centralize the control and protection of all electrical motors. In large commercial buildings, especially those with significant cooling requirements like in the UAE, the MCC manages vital HVAC motors (chiller pumps, cooling towers, AHUs), ensuring they start, stop, and operate safely and efficiently.

What is the difference between an MCC and a distribution board (DB)?

A distribution board (DB) is mainly designed to distribute electrical power to various circuits using switches and protective devices (like circuit breakers). An MCC is specifically designed to control and protect electric motors. While both distribute power, the MCC contains specialized motor control equipment, such as starters, overload relays, and control circuitry, which a standard DB does not.

Can an MCC be integrated with a Building Management System (BMS)?

Absolutely. Modern, or "Smart" MCCs are designed with communication capabilities (often using protocols like Modbus TCP or Ethernet/IP) to interface directly with a BMS. This integration allows the BMS to remotely monitor motor status, start/stop motors, and gather critical diagnostic data for predictive maintenance and energy management.

How often should an electrical MCC be inspected?

It is generally recommended that a comprehensive inspection and maintenance program be conducted annually. This should include thermal scans, torque checks of connections, and functional testing of the protective relays. However, critical MCCs operating in high-demand, 24/7 environments may require more frequent, perhaps semi-annual, inspections.
