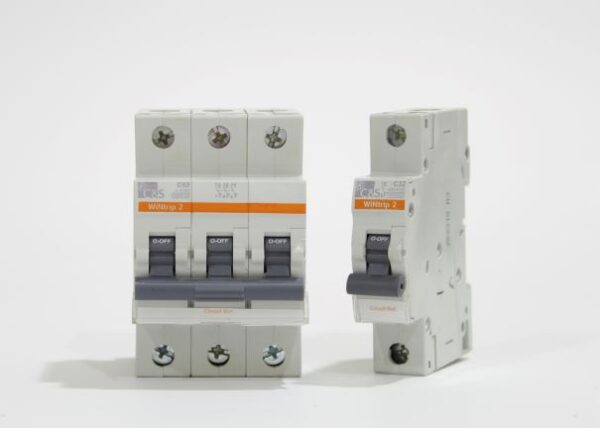

C&S WiNtrip2 MCB 1P 20A, C curve, CSMBS1C20X

Description

Buy MCB online by C&S Electric 1-pole MCB CSMBS1C20X

MCB circuit breaker 1P 20A, C curve

• Electrical safety
• Higher operational endurance
• Durable and reduced cost
• Plays a pivotal role in all the significant sectors such as Commercial, Industrial and Residential areas
• Ensures circuit identification and enhanced safety
• A clear indication of the operational status of the device
• Breaking Capacity 10kA
• IP 20-degree protection
• Trip Free mechanism with padlocking facility
• Low Power Consumption
• Current limiting design – class 3
• Air Circulation

What is Class ‘C’ or ‘C’ curve miniature circuit breaker?

‘C’ Curve MCB – miniature circuit breakers trip instantaneously if the current flowing through it is between 5-10 times the rated current. MCB with class C trip characteristics is suitable for residential and domestic applications. Moreover, they are also used for electromagnetic starting loads that cause medium starting/surge current. Loads with such surge currents are usually low-HP motors used by air-conditioners and submersible pumps with inductive load.

C&S WiNtrip2 MCB is a high performing thermal-magnetic current limiting device with the ability to disconnect short circuits up to 10kA. With such features, C&S Electric is setting new standards for user-friendly and superlative electrical circuit protection. C&S Electric is an Indian manufacturer of power distribution and control panel equipment in India, recently acquired by Siemens. You can find and buy MCB and other products from C&S Electric here.
