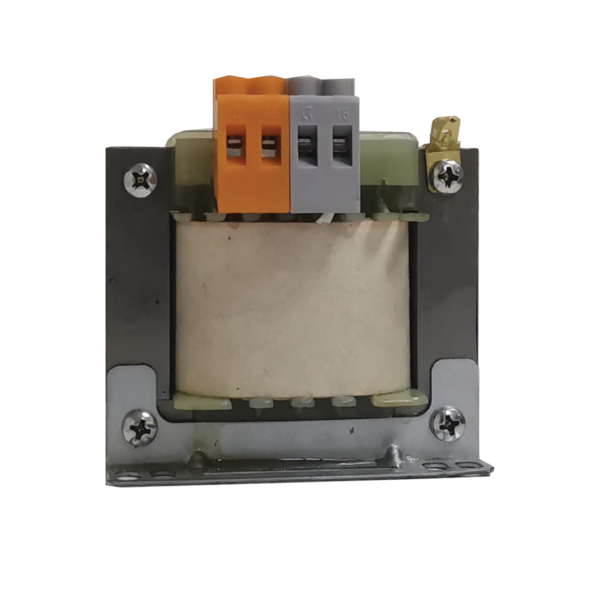

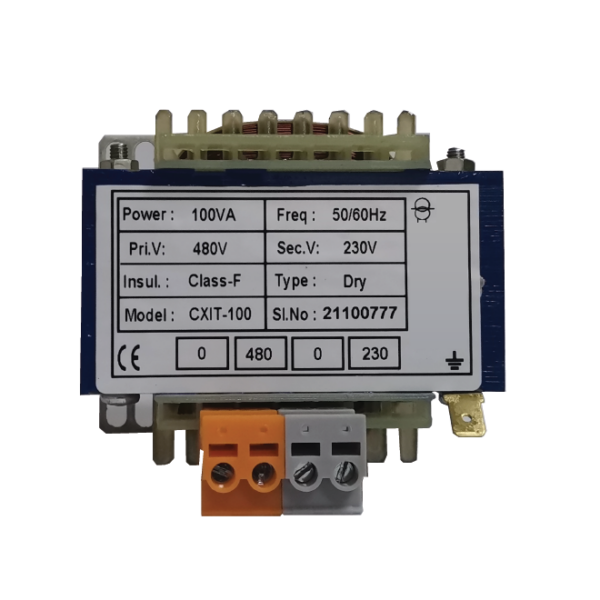

Control Transformer 100VA 480VAC 230VAC Single phase Eutroniks
AED 84.00 Incl. VAT
Technical Specification
Part Number: EXCT1P100
Rated Power: 100VA
Rated Input Voltage: 480VAC
Output Voltage at No Load Voltage: 232VAC
Output Voltage at rated power at 0.8pf: 230VAC
Rated Input Current : 0.20A(480V)
Rated Output Current : 0.43A(230V)
Rated Frequency: 50/60 Hz
No. of Phase: Single
Ref. Standard: IEC-61558
Please Enquire for other power ratings (50VA to 1KV) and input voltage rating.
- Description
- Additional information
- Reviews (0)
Description
Description
Control Transformers 100VA | Eutroniks
Eutroniks makes Transformers of great quality and supplies multiple types of power transformers.
Primary Winding Data
Highest Voltage: 1.1KV
Power frequency withstand voltage: 3KV
Secondary Winding Data :
Highest Voltage: 1.1KV
Power frequency withstand voltage: 3KV
Visit Eutroniks.com to know more about the company.
Buy Control transformers and more at Go switchgear Process control Category!
Additional information
Additional information
| Weight | 1.95 kg |
|---|---|
| Dimensions | 9 × 8.4 × 8 cm |
| Product Type | Transformer |
| Primary Current | |
| Secondary Cuurent | |
| Burden(VA) | |
| Busbar Size | |
| Cable Size | |
| Accuracy Class | |
| Brand | |
| Switchgear Category | Process Control |
