Digital Energy Meter EM3060 Nippen Instruments LCD 96x96mm 3P-4W 100 to 240V AC (L-N) 173 to 415V AC (L-L)
AED 235.00 Excl. VAT
Energy Meter Features
- 12 Digit energy (kWh)
- Programmable CT, PT (Primary / Secondary)
- Modbus RTU Communication (RS485)
- Pulse Output
Find more digital Panel Meters at Go Switchgear Dubai UAE!
Buy Measurement Instruments and Panel Meters in UAE Oman Qatar Saudi Kuwait Bahrain
{
“@context” : “https://schema.org”,
“@type” : “Product”,
“image” : “https://goswitchgear.com/wp-content/uploads/2021/10/Digital-Energy-Meter-3-Phase-EM3060_01-150×150.jpg”,
“description” : “12 Digit energy (kWh)
“url” : “https://goswitchgear.com/product/digital-energy-meter-em3060-nippen-instruments-lcd/”,
“brand” : {
“@type” : “Brand”,
“name” : “Nippen”,
“logo” : “https://goswitchgear.com/wp-content/uploads/2021/06/Nippen-Electrical-Instruments-Logo.png”
},
“offers” : {
“@type” : “Offer”,
“price” : “AED250.00 AED225.00”
}
}
- Description
- Catalogues and Datasheets
- Additional information
- Reviews (2)
Description
Description

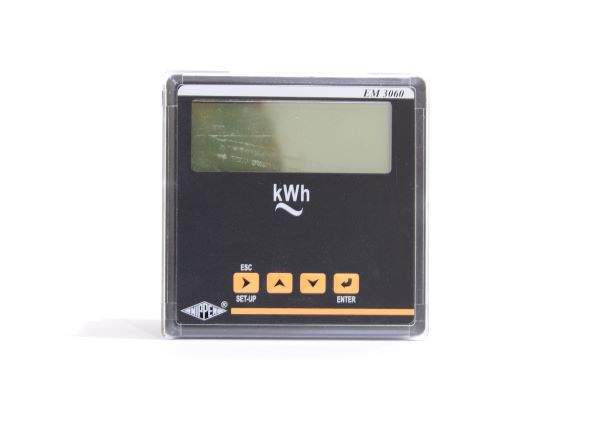

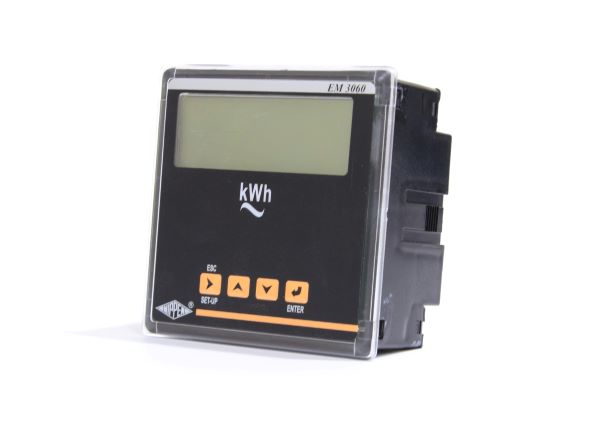

Nippen Digital Energy Meter 12 -digits LCD Backlight
Energy Meter Features
Electrical Connection Input: 3ØPhase-4Wire, 3ØPhase-3Wire, 1ØPhase-2Wire
Voltage Range: 100 to 240V AC (L-N) 173 to 415V AC (L-L)
Frequency Display: 45 to 65Hz
Scrolling : Auto / Manual
Power Consumption: 8VA max
Display Reset: Programmable (For energy)
Resolution : For energy : 0.1k, 1k
(depending upon CT rating)
Accuracy: Energy Active 1%
Memory Retention: 10 years (For energy)
Measuring Parameters: Energy kWh
Find more digital Panel Meters at Go Switchgear Dubai UAE!
Buy Measurement Instruments and Panel Meters in UAE Oman Qatar Saudi Kuwait Bahrain
Catalogues and Datasheets
Additional information
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 9.0 × 9.6 × 9.0 cm |
| Switchgear Category | Measurement Devices, Process Control |
| Primary Current | |
| Secondary Cuurent | |
| Product Type | Digital Panel Meters, Energy Management |
| Part Number | EM3060 |
