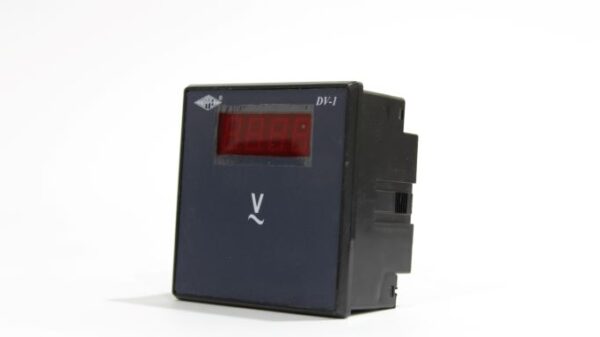

Digital Voltmeter DV-1 Nippen1-Phase
AED 40.00 Incl. VAT
Technical Specifications
Phase: 1
Input Current range: 50mA to 5 A (also available 1 A AC)
Input Voltage range: 50V to 480 V AC
Aux supply: 175 V to 280 V AC
Accuracy: Class 1, Class 0.5
Mounting: DIN case
Dimension (plate size-mm): 48*96, 96*96
Measurement: True RMS, 1 sec update time
- Description
- Datasheet and Catalogue
- Additional information
- Reviews (0)
Description
Description
Buy Nippen Digital Voltmeter 1-Phase DV-1 , Digital Panel Meter
Nippen Digital Meters provide true RMS measurements and user-programmable CT’s. The bright 4-digital LEd display allows the user to read and comprehend the measured voltage. It is enclosed in a compact DIN case, and self lifting terminals for a secure connection. The meters employ the latest SMT technology.
Features
- True RMS Measurement
- User Programmable CT ratio
- 4 Digit Bright red LED display
- Accuracy class 1.0 & 0.5%
- Flush mount
- Compact 48 x 96 & 96×96 mm DIN Case
- Low VA burden
- 20/30A Direct AC/DC (optional)
- Finger Proof Self–lifting Terminals for connection
Find more digital Panel Meters at Go Switchgear Dubai UAE!
Buy Measurement Instruments and Panel Meters in UAE Oman Qatar Saudi Kuwait Bahrain at Go Switchgear.
Datasheet and Catalogue
Additional information
Additional information
| Product Type | Digital Panel Meters |
|---|---|
| Primary Current | |
| Secondary Cuurent | |
| Switchgear Category | Measurement Devices |
