Elmex PV Solar Straight Connector 2.5/4.0/6.0mm2 EMPV4N

Solar PV Crimping tool MC4MC3 Elmex 1 Solar PV Crimping tool MC4/MC3 ESCCT | Elmex
Solar PV connectors in UAE Elmex PV Solar Straight Connector 10mm2 EMPV10N
0 out of 5

AED 6.30 Incl. VAT

Rated Voltage: 1500V DC,
Rated Current: up to 70A,
IP67/IP68 Protection,
Snap Fit Locking.
TUV Certified

SKU: EMPV4N-1
View cart

Description

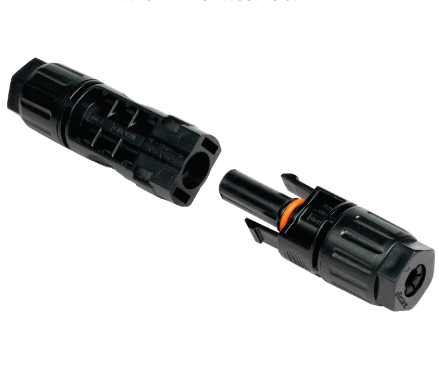

Elmex PV Solar Straight Connector EMPV4N

  • Rated Voltage: 1500V DC
  • Rated Current: 25A (2.5mm²), 30A (4.0mm², 6.0mm²)
  • Protection Degree: IP67 / IP68
  • Contact Material: Copper with Tin Plating
  • Ambient Temp: -40°C to +85°C, Max Operating Temp: 110°C
  • Pollution Degree: 3
  • Certified: TÜV, IEC 62852
