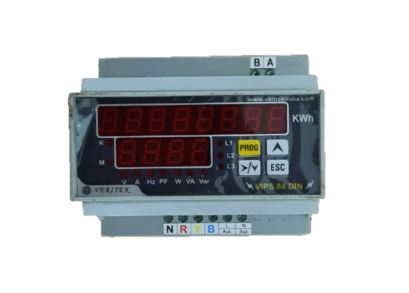

kWh Meter Energy Meter Three phase DIN Mounted CT Operated | VIPS84 Veritek
AED 189.00 Incl. VAT
Technical Specification kWh Meter Veritek VIPS 84 DIN CT operated
Electrical Connection: 3 phase -4 wire/1 phase-2 wire
Input Voltage Range: 0-500V AC (L-L)
Frequency: 45-65Hz
Input Current Range: 0.15A-63A
Auxiliary Supply: 90-270V A/DC (±15%)
Measuring Parameters
- Active energy
- Voltage (L–L)
- Voltage (L–N )
- Current (line)
- Power factor (phase)
- Power (Active, Reactive and Apparent)
- Frequency (System )
- Total Harmonic Distortion (Phase wise): Voltage and Current
- Load hour
- Description
- Datasheet
- Additional information
- Reviews (0)
Description
Description
Buy kWh Meter 63A by Veritek, DIN-rail Mounted and CT operated Single Phase/ Three Phase Energy Meter
- LED display
- Site Programmable CT and PT ratio (Primary and Secondary)
- True RMS measurement
- Password protection
- 63A direct current
- Total harmonic distortion measurement
- Auto-ranging
- Universal Auxiliary supply
VIPS84 DIN Energy meter by Veritek is a DIN rail mountable energy meter provided by Go Switchgear. This energy meter has multiple applications and can be used in various control panels, energy auditing systems, generator sets, and distribution systems technology.
A few advantages provided by VIPS84 DIN-rail mountable energy meter, are:
- Energy Management System
- To caution on the Extra Energy Consumption
- CT Ratio Site Programmable reduce inventory
You can find more energy meters, and related products for energy management under the process control tab of GoSwitchgear, an online electrical store for UAE| Bahrain | Qatar | Kuwait | Oman | Saudi.
VERITEK ENG. PVT. LTD. at GoSwitchgear Dubai
Datasheet
Additional information
Additional information
| Mounting | DIN-rail |
|---|---|
| Primary Current | |
| Secondary Cuurent | |
| Burden(VA) | |
| Busbar Size | |
| Cable Size | |
| Accuracy Class | |
| Brand | |
| Product Type | Digital Panel Meters, Energy Management |
| Switchgear Category | Process Control |
.jpg){kind=small}
Reviews
There are no reviews yet.
