Maximum Demand Meter Mono -Structure 0-600A 600/5A 96x96mm class 1.5 | Eutroniks

Description

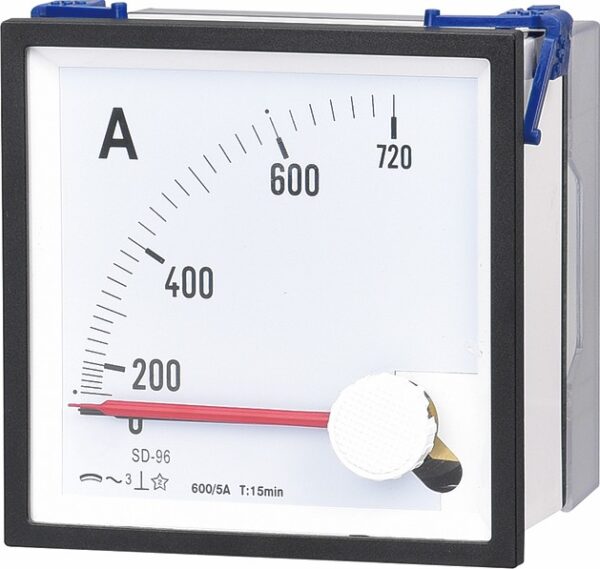

Maximum Demand Meter Mono-Structure 0-600A 600/5A 96x96mm Class 1.5

Enhance your load management capabilities with the Eutroniks Mono-Structure Maximum Demand Meter (SQ Series) — engineered for accurate peak demand monitoring in industrial and commercial electrical panels.

This model, featuring a measurement range of 0–600A (via 600/5A CT), uses a robust thermal bimetallic movement to measure and display the maximum average current over a standard 15-minute integration period. Its simple, durable design makes it ideal for environments where only peak load tracking is required without the need for real-time instantaneous current readings.

Encased in a rugged 96x96mm polycarbonate frame, this meter delivers:

• Measuring Range: 0–600A (external CT, 600/5A secondary)

• Thermal Time Delay: 15 minutes standard (8 or 20 minutes optional)

• Accuracy Class: 1.5

• Peak Demand Tracking: Red slave pointer shows the highest load recorded

• Reset Mechanism: Manual reset knob accessible from the front

• Mounting: Mosaic system compatible (92x92mm panel cutout)

• Protection Rating: IP40 (upgradable to IP54/IP65 on request)

• Certifications: CE, ROHS, and TSE approved

• Operating Frequency: 45Hz to 60Hz

Applications Include:

• Transformer feeder monitoring

• LT distribution panels

• Commercial building energy profiling

• Industrial load tracking

• Renewable energy systems peak load assessment

The Eutroniks Mono-Structure Maximum Demand Meters are designed for rugged performance, offering reliable load tracking even in vibration-prone, high-temperature environments commonly found in the Middle East.

Key Benefits:

• Simplified peak load monitoring

• Prevents system overloading and demand penalties

• Easy maintenance and long operational lifespan

• Optimized for tough industrial conditions

Monitor your electrical systems confidently with Eutroniks’ trusted peak demand solutions, available now at GoSwitchgear.com.
