Description

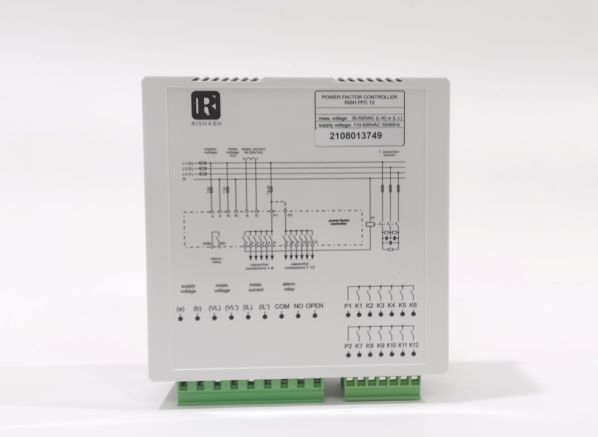

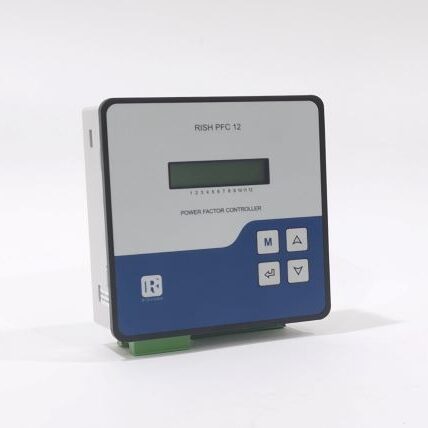

Automatic Power Factor controller RISH PFC 12 240V 110-550Vac MODBUS(RS485 Output)

APFC – Automatic power factor controller by Rishabh Instruments at GoSwitchgear

RISH PFC 12 is a power factor controller for reactive power compensation. it controls external reactive power element ( Capacitor ) to meet the reactive power demand of the load. This reduces the burden on the source to supply additional reactive current. precise and fast measurements are useful tools for system analysis. powerful protection function protects the system and switching elements in case of system faults.

APFC Features:

Autoinitialisation Function:
The controller has an auto init function to detect
1. Number of capacitors connected ( Capacitor bank count )
2. Capacitor kVAR value
3. Phase correction angle
Capacitor programming option:
Each output capacitor kVAR can be programmed either as
1. Direct kVAR value
2. Control series
3. Auto detected value
Control Output: The controller is available in basic 6,8, 12 output options. Selectively each output capacitor can be configured as permanently ON (Fixed compensation), Permanently Off (Faulty Bank), Auto mode.

Rishabh Instruments is a reputed control instrument Indian technology company, in 1985. It has a commendable global presence. The company acquired LUMEL, based in Poland, in 2010.

Rishabh Instruments PVT LTD.
