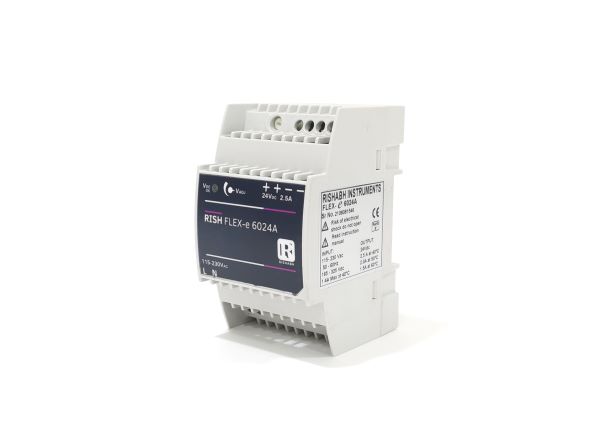

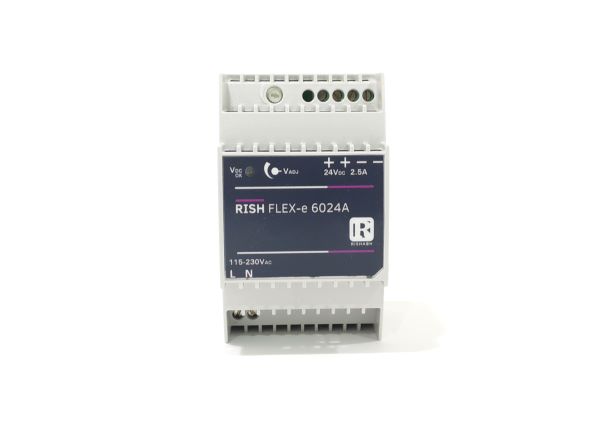

Switched Mode Power Supply Unit SMPS 24Vdc 2.5A 1Phase DIN Rail RISH_Flex-E_6024A
AED 99.75 Incl. VAT
Part no: Rish Flex-e 6024A
Input Voltage: 115 VAC / 230 VAC (165 VDC / 325 VDC)
Rated Current: 2.5 A @ 45°C; 1.875 A @ 60°C; 1.25 A @ 70°C
Output Voltage: 24 VDC ± 3%
Internal Fuse: 4 A
Power Boost current @ 60°C: 2.5 A (For ≤ 3 Minutes)
Overload: 105…160% rated output power
Mounting: DIN Rail (35mm) DIN50022
- Description
- Datasheet and Operating Manual
- Additional information
- Reviews (0)
Description
Description
DC Primary Switched Power Supply Unit 2.5A 24Vdc 1Phase | DIN rail | AC-DC converter
Switched Mode Power Supply 24dc output Rish Flex-e 6024A by Rishabh Instruments at GoSwitchgear
- Universal AC Input Range 85-264V
- Universal DC Input Range 120-370V
- High Efficiency up to 92%
- Isolation class-II
- Suitable for indoor use
- DIN rail mounting
- Strong overload without switch–off
- Adjustable output range
- 3 Protection modes (Manual Reset, Hiccup, Continuous Out)
- Power Good Relay (90/170/ 2B0/ 500W)
- Power Boost up to 150% for 3min
- 3-year warranty
Learn about Power supplies selection and more at GoSwitchgear Blog
Rishabh Instruments is a reputed control instrument Indian technology company, in 1985. It has a commendable global presence. The company acquired LUMEL, based in Poland, in 2010.
You can find more products such as relays and timers under the process control tab of GoSwitchgear, an online electrical store for UAE| Bahrain | Qatar | Kuwait | Oman | Saudi Arabia.
Datasheet and Operating Manual
Additional information
Additional information
| Weight | 0.25 kg |
|---|---|
| Dimensions | 62 × 54 × 90 cm |
| Mounting | DIN-rail |
| Product Type | Energy Management |
| Primary Current | |
| Secondary Cuurent | |
| Burden(VA) | |
| Busbar Size | |
| Cable Size | |
| Accuracy Class | |
| Brand | |
| Switchgear Category | Process Control |
| Part Number | Rish Flex-e 6024A |
