RRE Enclosure Hygrostat (NO and NC) 0 to +60° C
AED 78.75 Incl. VAT
Switch Difference 4% RH(+3%tolerance)
Permissible air velocity 15m/sec
Contact type Change-over contact
Contact resistance <10mΩ
Service life >100000 cycles
Min-switching capacity 20V AC/DC 100mA
Max-switching capacity 250VAC -5(1)A/20VA DC
Standards EN 55014-1-2 EN61000-3-2; EN61000-3-3
Mounting Clip for 35mm Din rail, EN50022 35mm
Operating /Storage Temperature 0 to +60° C
Protection type IP20
Permissible air velocity 15m/sec
Contact type Change-over contact
Contact resistance <10mΩ
Service life >100000 cycles
Min-switching capacity 20V AC/DC 100mA
Max-switching capacity 250VAC -5(1)A/20VA DC
Standards EN 55014-1-2 EN61000-3-2; EN61000-3-3
Mounting Clip for 35mm Din rail, EN50022 35mm
Operating /Storage Temperature 0 to +60° C
Protection type IP20
- Description
- Datasheet
- Additional information
- Reviews (0)
Description
Description

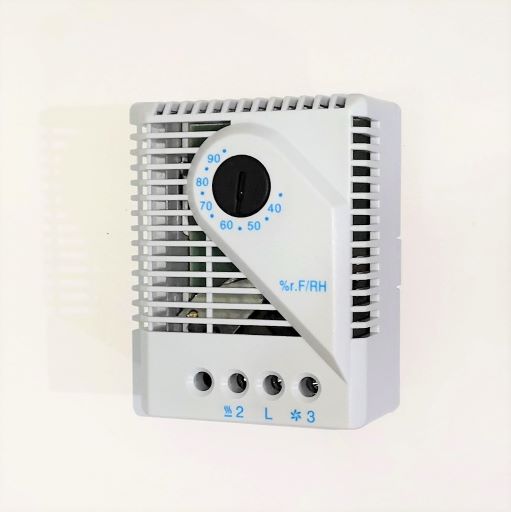

RRE Enclosure Hygrostat
Hygrostats are used to regulate the relative humidity of the air in the enclosure. It turns on the heater at a set humidity level. The dew point is thus raised, preventing condensation, and helping to prevent damage and faulty functioning of sensitive components.
Features:
- Adjustable range of humidity
- High switching capacity
- DIN-Rail mounting
