How to Tie Cables: A Step-by-Step Guide for Safe and Organized Cable Management

Why Good Cable Management Matters More Than Appearance

Cable management is easy to dismiss as a cosmetic task. An organized installation is easier to inspect, troubleshoot, expand, and maintain. It can also help protect cables from unnecessary bending, pulling, abrasion, and accidental movement. UL Solutions describes cable-management positioning devices as products used to bundle, secure, and position wires and cables in electrical installations. These include cable ties, fixing devices, bundling wraps, cable wraps, and wiring ducts.

Here is the key point:

A cable should be controlled without being crushed. The goal is not to tighten every bundle as firmly as possible. It is to create a stable route that protects the cable and keeps the installation accessible. That principle applies whether you are organizing a few computer cords, arranging control-panel wiring, managing workshop cables, or preparing a larger electrical installation.

Before You Start: Know What Kind of Cable You Are Managing

Not every cable should be handled in exactly the same way. Power cords, communication cables, control wiring, single-core conductors, fiber-optic cables, and low-voltage signal cables can have different installation requirements.

Before tying cables, identify what you are working with.

Ask yourself:

• Is the cable energized?
• Is it a temporary cord or permanent wiring?
• Will the bundle be indoors or outdoors?
• Is it exposed to sunlight, moisture, chemicals, vibration, or heat?
• Does the cable need to move?
• Will technicians need regular access?
• Is the fastening product suitable for the environment?

These questions determine which fastening method makes sense.

For example, a small bundle behind an office desk may need only reusable hook-and-loop straps. A bundle inside electrical equipment may require appropriately rated cable-management products. Outdoor or industrial applications can demand materials with greater environmental resistance.

UL's cable-management guidance notes that evaluation of positioning devices can consider factors such as mechanical properties, flammability, operating temperatures, installation temperatures, and environmental exposure.

Step 1: Disconnect Power Whenever the Task Requires It

This comes before neatness. If you are working around electrical equipment, terminals, exposed conductors, or wiring that requires access to energized parts, follow the appropriate isolation and electrical-safety procedures. Do not treat cable organization as permission to work on live wiring.

For ordinary plug-in equipment, shut devices down and unplug them when practical before reorganizing cords.

Also inspect every accessible power cord before bundling it.

Look for:

• Cuts
• Cracks
• Fraying
• Flattened insulation
• Exposed conductors
• Damaged plugs
• Missing grounding pins
• Heat damage
• Loose connections

OSHA specifically warns that flexible cords are vulnerable because they are exposed and unsecured and that hazards can result when cords, connectors, receptacles, and connected equipment are used or maintained improperly.

Step 2: Untangle Everything Before Building Bundles

Here is where many people rush.

Trace each cable from one end to the other so you know what it serves. Remove unnecessary cords and obsolete connections before creating new bundles. You avoid trapping unused leads in a bundle. You are less likely to route a cable to the wrong device. And future troubleshooting becomes much easier. For complex installations, label both ends while everything is separated.

Step 3: Group Cables by Function Before Securing Them

Do not grab every visible cord and force everything into one giant bundle. Depending on the application, you might separate cables by:

• Equipment
• Destination
• Circuit
• Voltage level
• Signal type
• Maintenance frequency
• Movement requirement

This improves both appearance and serviceability.

It may also be necessary to maintain separation between certain power and communication circuits based on applicable codes, equipment instructions, or system-design requirements.

For professional electrical installations, follow the applicable electrical code, project specifications, and manufacturer instructions rather than relying solely on general desk-cable-management habits. In the United States, the National Electrical Code establishes minimum requirements for safe electrical installation. ESFI notes that the NEC is part of the NFPA 70 standard framework.

Step 4: Choose the Right Cable Tie Material

If you are learning how to tie cables correctly, choosing the fastener is just as important as learning the fastening motion. Different materials suit different jobs.

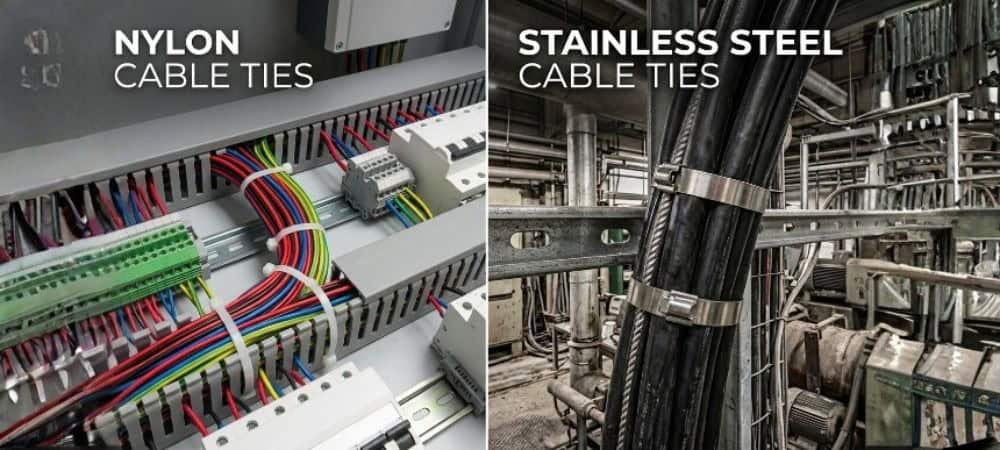

Nylon Ties for Everyday Cable Organization

A nylon cable tie is widely used because it is simple, lightweight, economical, and available in many dimensions. It can work well for equipment wiring and general cable organization when the specific product is suitable for the environment.

Go Switchgear lists self-locking nylon cable ties in its cable-management range, including options intended for bundling wires and cables. Its published product documentation includes different lengths, widths, colors, and bundle capacities. That selection matters because using a tie that is unnecessarily small can make installation difficult, while an oversized tie may be cumbersome in compact spaces.

Stainless Steel for More Demanding Conditions

Plastic is not automatically the right answer everywhere. For certain industrial, high-strength, or demanding environmental applications, metal zip ties may be more appropriate when their product rating and installation requirements match the job.

Go Switchgear currently lists KableKonnect stainless-steel cable ties, including a 400 × 4.6 mm model manufactured from 304 stainless steel. Always select the fastener according to its documented application rather than assuming stronger automatically means better.

Step 5: Select an Appropriate Tie Length and Width

A tie needs enough length to wrap around the bundle and engage its locking mechanism correctly.

Then choose from suitable cable tie sizes based on:

• Bundle diameter
• Required strength
• Available installation space
• Cable flexibility
• Environmental conditions
• Manufacturer specifications

Avoid creating one oversized bundle simply because you have an extra-long tie.

Several smaller, logically organized bundles can be easier to inspect and service than one thick mass of wiring. This is particularly useful inside enclosures where individual devices may eventually require replacement.

Step 6: Align the Cables Without Forcing Them

Cables should not be pulled hard against connectors or terminals. You also want enough slack at appropriate points for connection, disconnection, equipment movement, and future service. This becomes particularly important around plugs, terminal blocks, connectors, and cable-entry points. Excessive strain at those locations can transfer mechanical force to a connection that was never intended to carry it. OSHA requirements for flexible cords include strain-relief considerations, reinforcing the broader principle that tension should not be transferred unnecessarily to joints or terminal connections.

Step 7: Wrap the Tie Around the Bundle Correctly

Now comes the actual fastening step.

• Place the cable tie around the grouped cables.
• Insert its tail into the locking head in the correct direction.
• Pull until the loop closes around the bundle.
• Then stop before excessive pressure is applied.

That last point is critical.

You want enough tension to keep the cables organized without visibly deforming their insulation. When using zip cable ties, the bundle should feel controlled rather than compressed. If cables cannot move even slightly and the tie leaves a pronounced indentation, it may be too tight. For repeated professional work, a controlled-tension cable-tie installation tool can help create more consistent fastening than aggressively pulling every tie by hand.

Step 8: Never Use Tightness as a Substitute for Support

Long cable runs may need suitable supports, trays, ducts, clips, mounts, or other cable-management hardware. If a heavy bundle hangs from one tie, that fastener is carrying far more mechanical load than a tie used simply to maintain the shape of an already supported route. Distribute support across the cable path.

In suitable applications, zip tie cable mounts can help establish organized routing points on surfaces, provided the mount and its attachment method are rated and installed appropriately. For industrial equipment, follow the specified support system. For home or office setups, adhesive mounts can be useful for lightweight cables, but surface cleanliness, adhesive quality, heat, and cable weight can affect how well they remain attached.

The goal is simple:

Support the route instead of suspending everything from a single point.

Step 9: Space Fastening Points Sensibly

More ties do not automatically create better cable management. Placing a tie every inch wastes materials and can make maintenance frustrating. Using too few can allow cables to sag, swing, or migrate.

Choose spacing based on the cable type, bundle weight, installation orientation, environment, and support method. A horizontal run resting in suitable cable support may need less restraint than a vertical bundle. A moving assembly may require a completely different approach. A practical cable bundler can make larger quantities easier to organize, but it should still be used with attention to cable type and required flexibility. Keep serviceability in mind. A technician should not have to cut twenty unnecessary restraints just to replace one small component.

Step 10: Trim Cable-Tie Tails Safely

Once a permanent tie is secured at appropriate tension, trim the excess tail with the right tool.

Here is a commonly missed detail:

• Do not leave a razor-sharp plastic edge.
• A poorly cut tie can create a sharp point that scratches hands and makes future maintenance unpleasant.
• Use a suitable flush cutter or cable-tie installation tool where appropriate.
• Cut as close to the locking head as the product and tool permit without damaging the lock.
• Then run a cautious visual check around the completed bundle.

Professional cable management should be safe to work around later, not merely attractive on installation day.

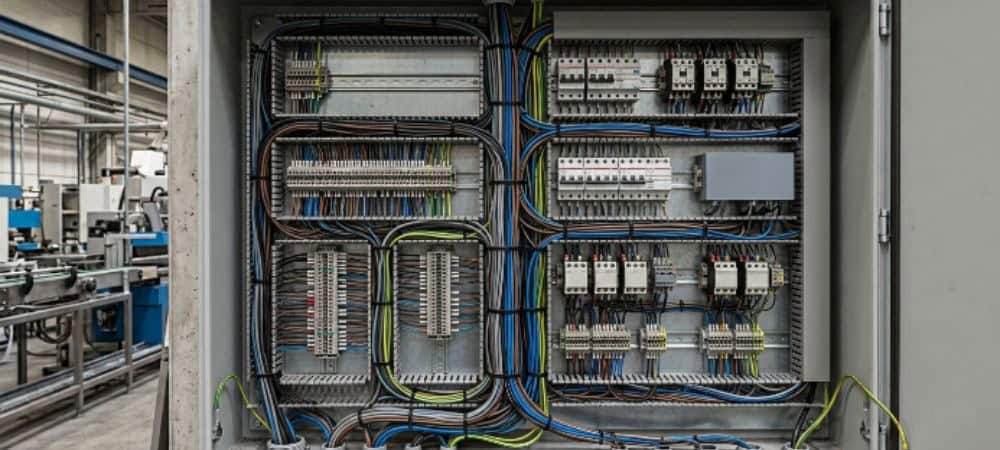

Step 11: Use Mounts, Ducts, and Trays Where They Make Sense

Cable ties are only one part of a complete management system.

In control panels, workshops, server areas, production equipment, and commercial spaces, other routing hardware can provide better long-term organization.

Options may include:

• Wiring ducts
• Cable trays
• Clips
• Conduit
• Cable glands
• Surface raceways
• Hook-and-loop straps
• Cable markers
• Mounting bases

What About Electrical Wire Connections?

Cable management and electrical connections are not the same task. Bundling insulated conductors with electrical wire ties organizes their route. It does not electrically connect conductors. Likewise, a cable tie must never replace an approved connector, terminal, splice, or other connection method required for the circuit.

People searching for the safest way to join electrical wires should understand that the correct connection depends on the conductor, circuit, voltage, enclosure, connector listing, manufacturer instructions, and applicable electrical code. For fixed electrical wiring, use approved connection methods and have qualified electrical personnel perform work when required. Do not twist conductors together and assume wrapping or bundling material makes the joint safe.

How to Handle Wires That Need to Stay Together

The phrase how to tie wires together can mean two very different things. If you simply want insulated cables to follow the same physical route, use a suitable cable-management method. If you mean electrically joining conductors, stop treating it as a cable-organization task.

Go Switchgear carries products such as cable lugs alongside its broader cable and panel-accessory range. Cable lugs are used in applications where properly specified conductor termination is required, not as a substitute for cable ties or general bundling hardware.

How to Join Cable Ties for a Larger Bundle

People commonly ask how to connect zip ties when they need additional reach. With compatible conventional ties, one approach is to feed the tail of one tie through another tie's locking head to create a longer loop.

However, this should not become an excuse to exceed the product's intended application or load. For a permanent or demanding installation, choosing a correctly sized tie is usually cleaner and more predictable than constructing an improvised chain. If a bundle is exceptionally large, reconsider whether it should be divided into smaller groups or routed through proper support hardware. One huge bundle can make inspection, heat management, troubleshooting, and future changes more difficult.

Should You Use Reusable or Permanent Fasteners?

It depends on how often the installation changes. Permanent locking ties work well where the cable arrangement is stable. Reusable straps or releasable restraints can be smarter where devices are regularly moved, upgraded, or replaced. Think about an office workstation. Monitors, chargers, laptops, docking stations, and peripherals change frequently. A reusable system often makes more sense there. Now think about fixed internal equipment wiring. A more permanent management method may be appropriate when installed according to equipment requirements. This is why blindly using zip tie wires for every situation is not ideal. Choose based on lifecycle, not convenience.

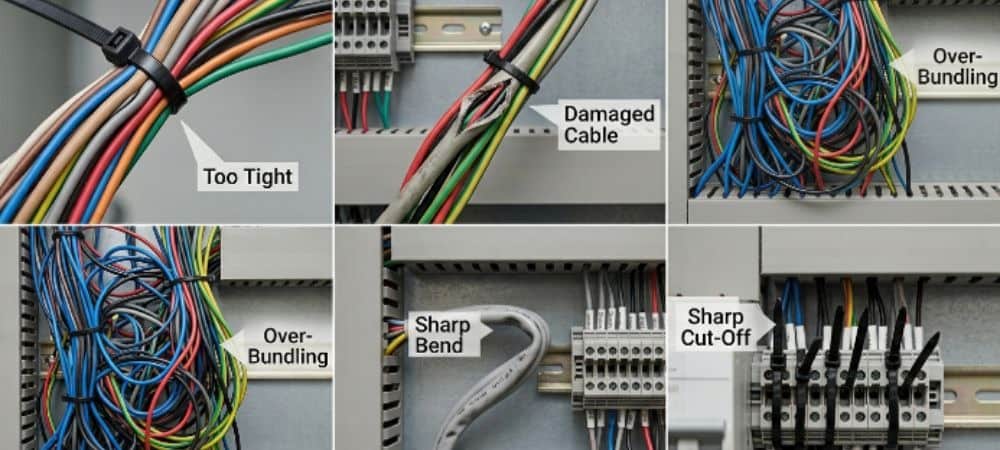

Common Mistakes That Turn Neat Wiring Into Bad Wiring

Knowing how to tie cables also means knowing when not to tighten, combine, or restrain them.

Several mistakes appear repeatedly.

Mistake 1: Pulling Ties Too Tight

Extreme tension can press the fastener into cable insulation.

Secure does not mean crushed.

Mistake 2: Bundling Damaged Cords

Cable ties cannot repair electrical damage.

ESFI advises against using damaged cords, while OSHA also highlights the hazards associated with damaged flexible cords.

Mistake 3: Putting Every Cable in One Bundle

Organization should make a system easier to understand.

If one bundle combines unrelated cables and makes maintenance harder, it has failed that test.

Mistake 4: Ignoring Bend Radius

Do not force cables around unnaturally sharp corners.

Follow cable-manufacturer requirements, particularly with specialized cable types.

Mistake 5: Leaving Sharp Cut-Off Ends

Flush, clean trimming creates a more service-friendly installation.

Home Office Cable Management Without the Mess

A home-office setup usually has different priorities.

You may have:

• Laptop chargers
• Monitor cables
• USB leads
• Ethernet cables
• Speaker wires
• Power strips
• Docking-station cables

Start by placing devices where they will remain.

This is where simple tie wires or suitable cable-management restraints can help create order, but the restraint must still match the cable and application.
