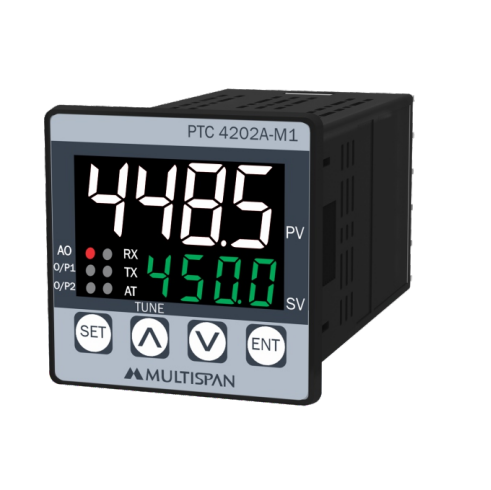

Analog PID Temperature Controller J/K/PT-100 2 Relay (No-C)o/p-4-20mA | PTC-4202A-WG Multispan
AED 246.75 Incl. VAT
Technical Specification
- Part number: PTC-4202A WG
- Dimensions(mm ): 48 x 48 x 95
- Panel Cutout (mm): 45 x 45
- Relay Type: 3 Relay 1C/O 5A @230V AC and SSR – 2 set points
- Control Action: AUTO PID / ON-OFF/ TP( Configurable )
- Sensor: Universal Input – RTD sensor and J/K Type
- Accuracy: ±1% of FSD
- Power supply: 100-250V AC ±10%, 50-60 Hz SMPS
Download datasheet for more information
- Description
- Datasheet
- Additional information
- Reviews (0)
Description
Description
PID Analog Temperature Controller 2 Relay | Universal input J/K/PT-100 (No-C)o/p-4-20mA | Two setpoints
PID Process Temperature Controller PTC-4202A-WG Multispan Instruments
-
Upper: 4-digit, 7-segment, 0.39” White LED Display
-
Lower: 4-digit, 7-segment, 0.28” Green LED Display
-
Universal input TC/RTD / Standard Analog
-
PID/ON-OFF
-
Auto /Self-tuning
-
2 set points (Relay / SSR/ Analog controlling output)
Applications for Analog output Temperature Controller:
- Packaging Machinery
- Extrusion Machinery
- Furnace & Boilers
- Ovens & Incubators
- Food Industry
Multispan control Instruments, an ISO 9001:2015 Certified company, is a manufacturer and solution provider of Process Control & Automation Instruments, from India. With 100+ products, Multispan products are used globally for a wide range of applications within control panels, switchgear, and related process control machinery.
Datasheet
Additional information
Additional information
| Weight | 0.210 kg |
|---|---|
| Dimensions | 5 × 9.6 × 9.6 cm |
| Brand | |
| Country of Origin | India |
| Primary Current | |
| Secondary Cuurent | |
| Burden(VA) | |
| Busbar Size | |
| Cable Size | |
| Accuracy Class | |
| Brand | |
| Mounting | Panel Mount |
| Product Type | Temperature Controller |
| Switchgear Category | Process Control |
| Part Number | PTC 4202A WG |
| rated-voltage | 230Vac |
.jpg){kind=small}
Reviews
There are no reviews yet.
