Comb busbar 1-pole Pin type 1-phase 1 metre (for MCBs) Pollmann
AED 22.05 Incl. VAT
Technical Specifications
No.of poles 1
Article-No. 222 01 03
Type Section Rail Pin type
P.u. 50
Length (Mod/mm) 57/1000
Cross-section (mm2) 10
Pin (mm x mm) 4 x 10.5
Length: 1 meter
- Description
- Additional information
- Reviews (0)
- Technical Reference
Description
Description

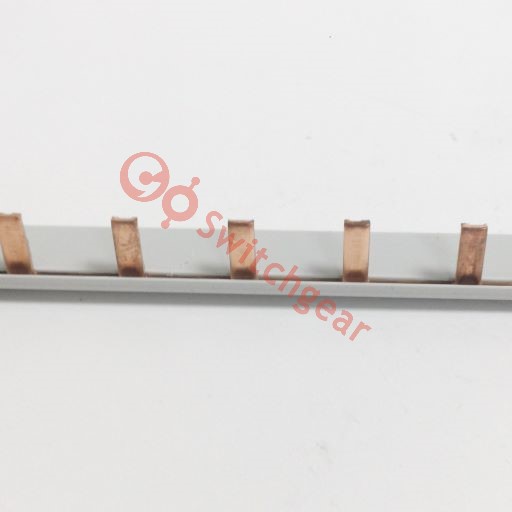

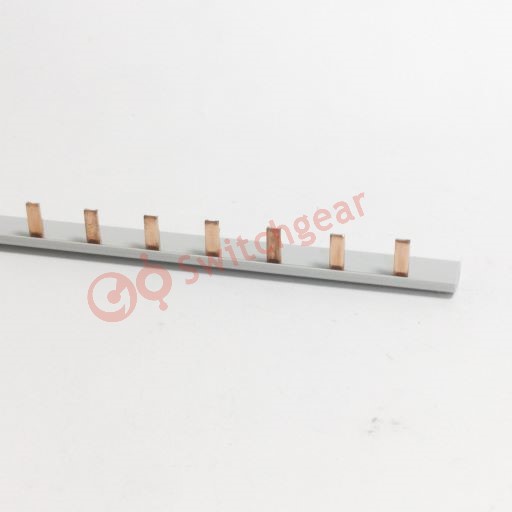

Copper Comb Busbar 1 pole 1 phase, Section Rail Pin Type Single-pole
Pollmann Elektrotechnik
The busbars enable an up-to-date way of connecting all kinds of installation devices. Compared to the conventional installation using wiring bridges it offers the following advantages:
- faster installation – saving time
- compact design
- reliable assignment of the phases
- Besides the pole number, the cross-section, and the connection technology – pin or fork type- the construction type is used as a different criterion.
- Usually, the standard busbar is supplied in 1m lengths. The customer will cut these bars according to his requirements.
Advantages:
- possibility of individual solutions regarding lengths
- universal for MCBs
Additional information
Additional information
| Country of Origin | Germany |
|---|---|
| Primary Current | |
| Secondary Cuurent | |
| Switchgear Category | Accessories |
| Product Type | Comb Busbars |
