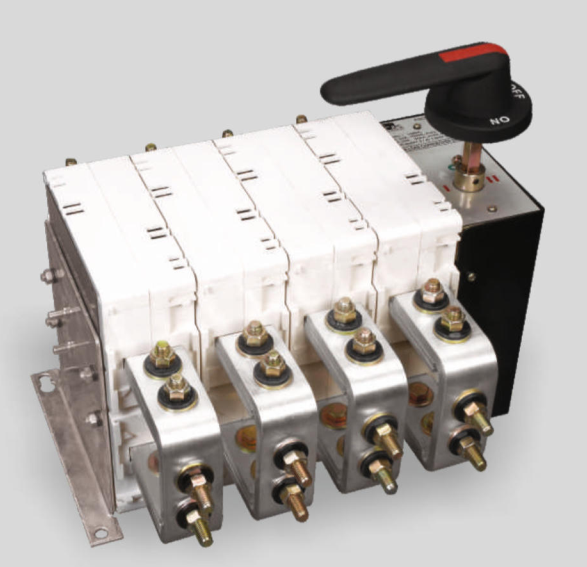

C&S 200Amp 4P Change over switch CSCS200NM4CO Open type

Description

Buy Compact ON-Load Changeover Switch 4P 200A C&S Electric (open type without enclosure)

• Modular design in 3 & 4 pole (63A -3150A), suitable for utilization category AC-23A
• Easy maintenance as each pole can be replaced easily due to modular construction, saving cost of entire switch in case of single pole being burnt or damaged.
  Available in open execution and sheet steel enclosure as per requirement
• Complies with the latest requirements of IS/IEC 60947-1 & 3 standards.
• Unique self cleaning contact construction with special knife type (200A-1800A), double break switching contacts (63A-160A & 1000-1800A) & single break(200A-800A). Positive opening operation, with quick make – break and effective arc splitting plates guarantee reliability and long electrical life of the switch.
• Excellent tracking resistance of isolation material ins witch frame prevents flashover between phases even in the most trying & difficult locations.

Read more at C&S electric website

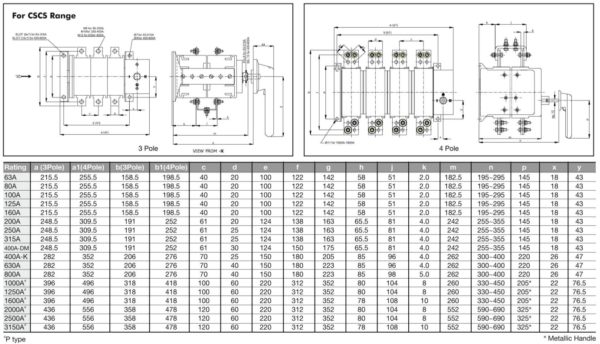

Changeover Switch Dimensions

C&S Electric is an Indian manufacturer of power distribution and control panel equipment in India, recently acquired by Siemens.  Go switchgear provides you great prices for their quality products under the circuit protection category. You can find and buy MCB and other products from C&S Electric here in Dubai.

Buy Switch disconnectors, Isolators and similar circuit protection electrical instruments at Go Switchgear- 3 and 4 pole by C&S Electric!    UAE | Oman | Bahrain | Kuwait | Saudi and Qatar.
