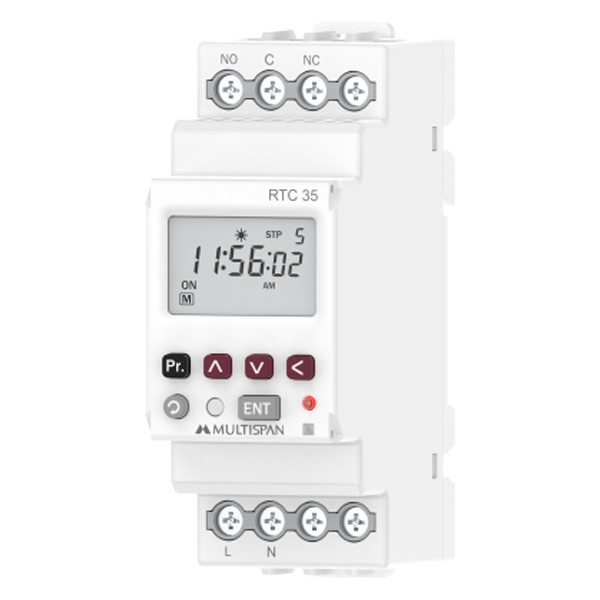

Digital Time Control Switch 1 C/O relay 10A TCS-35 Multispan
AED 68.25 Incl. VAT
Brand: Multispan
Model No.: TCS-35
Voltage: 230 AC ± 10%
Frequency: 50 Hz to 60 Hz
Relay: 1 nos
Relay Type: 1 C/O (NO-C-NC)
Relative Humidity: UP to 95% RH (non-condensing)
Total 50 On Steps And 50 Off Steps
Clock 12 Hr (AM / PM) And 24 Hr Selection
Holidays Can be set 0 to 24 dates max.
- Description
- Additional information
- Reviews (0)
- Datasheet
Description
Description
The TCS-35 Multispan Time Control Switch is a reliable and efficient device designed for precise time-based automation. It features a 1 C/O (Changeover) relay with a 10A capacity, making it suitable for controlling electrical loads in various applications such as
- Home Automation
- Commercial Buildings
- Irrigation Systems:
- Security Systems:
- Public Utilities
- Total 50 On Steps And 50 Off Steps
- Sets holidays without having to revise the existing program. Can be set 0 to 24 dates max.
- Range Hour/Minute/Second
- Reset by Front Keypad
- With battery backup for RTC
With a Text LCD (without backlight), the TCS-35 offers user-friendly operation while ensuring accurate switching. Operating on a 230V AC ±10% power supply with a frequency range of 50Hz to 60Hz, this time control switch is built for stability and durability.
Its compact design (90mm x 35mm x 62mm) makes it easy to install in different control panels, while its operating temperature range of 0°C to 55°C ensures reliable performance in varying environmental conditions. Ideal for industrial, commercial, and residential applications requiring automated switching based on preset time schedules.
Additional information
Additional information
| Brand | |
|---|---|
| Model No | TCS-35 |
| Primary Current | |
| Secondary Cuurent | |
| Burden(VA) | |
| Busbar Size | |
| Cable Size | |
| Accuracy Class | |
| Brand | |
| Voltage | 230 AC +- 10% |
| Frequency | 50 Hz to 60 Hz |
| Display | Text LCD (Without Backlight) |
| Dimension (mm) | 90(H) x 35 (W) x 62(D) mm |
| Rating | 10A, 230V AC Resistive Load 24V DC |
| Operating Temp. | 0°C to 55°C |
