Digital Voltmeter DV-3 Nippen 3-Phase
AED 95.00 Incl. VAT
Technical Specifications (Can be connected with Selector Switch)
Phase: 3
Input Current Range: 50mA to 5 A (also available 1 A AC)
Input Voltage range: 50V to 480 V AC
Aux supply: 175 V to 280 V AC
Accuracy: Class 1, Class 0.5
Mounting: DIN case
Dimension (plate size-mm): 48*96, 96*96
Measurement: True RMS, 1 sec update time
- Description
- Datasheet and Catalogue
- Additional information
- Reviews (0)
Description
Description

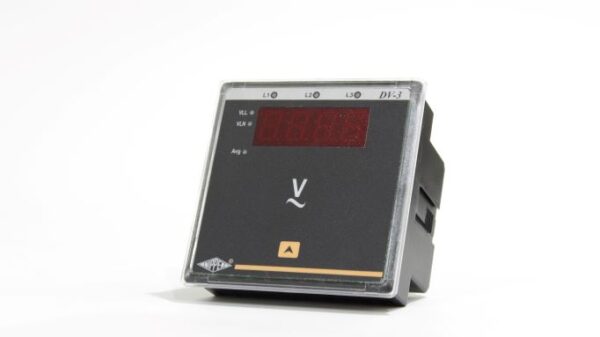

Buy Nippen Digital Voltmeter 3-Phase DV-3 , Digital Panel Meter
Nippen Digital Meters provide true RMS measurements and user-programmable CT’s. The bright 4-digital LEd display allows the user to read and comprehend the measured voltage. It is enclosed in a compact DIN case, and self lifting terminals for a secure connection. The meters employ the latest SMT technology.
The meter has to be used with a selector switch to be able to measure voltage between three phases and, also between neutral and each phase. Go Switchgear recommends Eutroniks Voltmeter sector switch in the accessories section of our online electrical supply store. Click here for more information on the Voltmeter selector switch and wiring of the switch the Nippens 3 phase Voltmeter
Features
- True RMS Measurement
- User Programmable CT ratio
- 4 Digit Bright red LED display
- Accuracy class 1.0 & 0.5%
- Flush mount
- Compact 48 x 96 & 96×96 mm DIN Case
- Low VA burden
- 20/30A Direct AC/DC (optional)
- Finger Proof Self–lifting Terminals for connection
Find more digital Panel Meters at Go Switchgear Dubai UAE!
Buy Measurement Instruments and Panel Meters in UAE Oman Qatar Saudi Kuwait Bahrain at Go Switchgear
Datasheet and Catalogue
Additional information
Additional information
| Switchgear Category | Measurement Devices |
|---|---|
| Primary Current | |
| Secondary Cuurent | |
| Product Type | Digital Panel Meters |
| Country of Origin | India |
