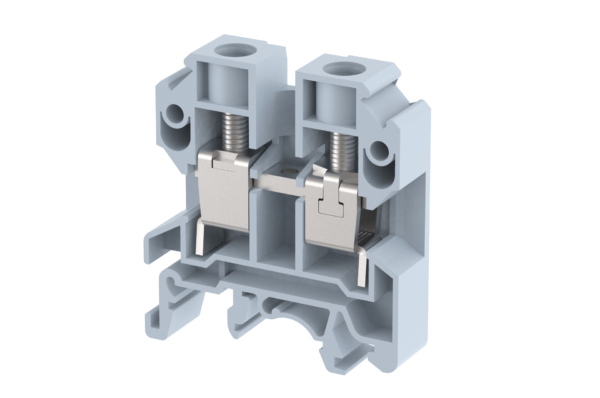

KUT 10 Elmex Terminal Block Feed Through 800 V / 57 A / 10 sq mm / 1.2 Nm
AED 1.35 Incl. VAT
Technical Specifications
Product Name Terminal Feed Through – (Screw Connection)
Rated Current IEC 57 A
Rated Voltage IEC 800V
Wire cross-section IEC 10 sq mm
Wire Termination Technology Screw Connection
Dimensions (mm) 46.4*42.5*10
Screw Size M4
- Description
- Catalogue and Datasheet
- Additional information
- Reviews (0)
Description
Description
Elmex Terminal Feed Through – KUT 10
Certifications and Standards
Control and automation application processes need a fuse protection facility for safe and reliable operation. Elmex Terminal Block Feed has built-in safety fuse levers. The fuse holders are made of special grade phosphor bronze, offering low contact resistance. Glass cartridge fuse of 5 mm x 20 mm, 5 mm x 25 mm, or 6 mm x 32 mm size are accommodated in the Terminal blocks. A solid brass link-type DL4 in place of the fuse makes it possible to use it as a disconnection-type terminal block. This enables it to just occupy the space of one terminal block but work as a pair of terminal blocks i.e. – an upper level with fuse protection. One particular pair of signals can be assigned by one terminal. The provision of an LED is made to indicate a blown fuse. Standard operating voltages: D1=24 VDC, D48 VDC, D3=110 VDC, D4=220 VDC, D5=12 VDC, A1=110 VAC and A2=240 VAC.
Elmex is a market leader in the electrical wire termination technology arena in India Since 1963.
Click here to know more about terminal blocks, applications, and their types.
Catalogue and Datasheet
Additional information
Additional information
| Brand | |
|---|---|
| Part Number | KUT10 |
| Primary Current | |
| Secondary Cuurent | |
| Burden(VA) | |
| Busbar Size | |
| Cable Size | |
| Accuracy Class | |
| Brand | |
| Product Type | Connectors and Terminals, Terminal Blocks |
| Switchgear Category | Accessories |
