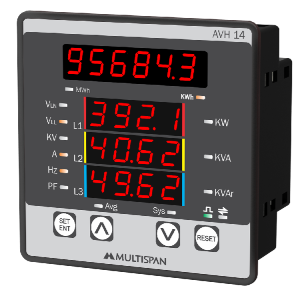

Multifunction Meter 3 Phase class 0.5 True RMS 96×96 AVH 14-M1 Multispan
AED 199.50 Incl. VATAED 183.75 Incl. VAT
Get in touch for Bulk prices.
- Part number: AVH-14-M1
- Dimensions(mm ): 96 x 96 x 54
- Panel Cutout (mm): 92 x 92
- Voltage: 100 To 520V ( L-L )
- Current: 5A (0.5 to 5Amp) or 1A (0.1 to 1Amp)
- Accuracy: class 0.5
- Power supply: 110-270V AC ±10%, 50 Hz SMPS
- Protection: IP 65
Download datasheet for more information
Get in touch for Bulk prices.
- Description
- Datasheet
- Additional information
- Reviews (0)
Description
Description
Multifunction meter 3 Phase class 0.5 | kWh Measurement | MFM Multipurpose meter
MFM Digital Panel Meter True RMS with kWh Indication AVH 14-M1
-
Wide Measuring Range : CTR/PTR Selectable
-
Accuracy Class 0.5 True RMS
-
Pulse Output (Optional)
-
RS-485 Modbus (Optional)
Applications for VAF Meter:
- Control & Relay Panel
- Original Equipment
- Manufacturers ( OEMs )
- Energy Management System
- DG Set Panels
- LT Panel
- Power Control Center Panels
- Motor Control Center Panels
Multispan control Instruments, an ISO 9001:2015 Certified company, is a manufacturer and solution provider of Process Control & Automation Instruments, from India. With 100+ products, Multispan products are used globally for a wide range of applications within control panels, switchgear, and related process control machinery.
Datasheet
Additional information
Additional information
| Weight | 0.347 kg |
|---|---|
| Dimensions | 9.6 × 9.6 × 5.4 cm |
| Brand | |
| Country of Origin | India |
| Mounting | Panel Mount |
| Product Type | Digital Panel Meters |
| Switchgear Category | Measurement Devices |
| Part Number | AVH 14-M1 |
| rated-voltage | 230Vac |
