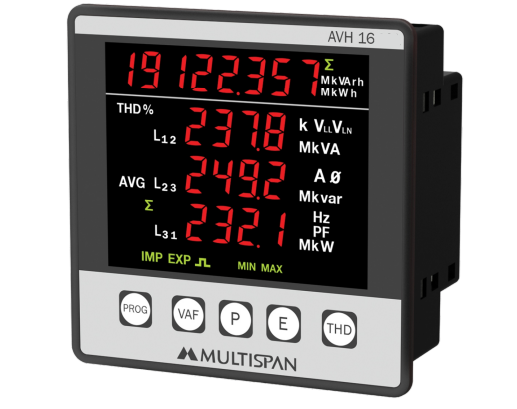

Multifunction Meter 3 Phase class 0.5 True RMS 96×96 AVH 16 | Multispan
AED 320.00 Incl. VATAED 194.25 Incl. VAT
Get in touch for Bulk prices.
- Part number: AVH-16
- Dimensions(mm ): 96 x 96 x 54
- Panel Cutout (mm): 92 x 92
- Voltage: 100 To 520V ( L-L )
- Current: 5A (0.5 to 5Amp) or 1A (0.1 to 1Amp)
- Accuracy: class 0.5
- Power supply: 110-270V AC ±10%, 50 Hz SMPS
- Protection: IP 65
AVH-16 is a Better version of AVH-14
Download the datasheet for more information
Get in touch for Bulk prices.
- Description
- Additional information
- Reviews (0)
- Datasheet
Description
Description
Multifunction Meter 3 Phase class 0.5 | kWh Measurement |MFM Multipurpose meter
MFM Digital Panel Meter True RMS with kWh Indication AVH 16
- Wide Measuring Range: CTR/PTR Selectable
- Accuracy Class 0.5 True RMS
- Pulse Output (Optional)
- RS-485 Modbus (Optional)
Applications for VAF Meter:
- Control & Relay Panel
- Original Equipment
- Manufacturers ( OEMs )
- Energy Management System
- DG Set Panels
- LT Panel
- Power Control Center Panels
- Motor Control Center Panels
Multispan control Instruments, an ISO 9001:2015 Certified company, is a manufacturer and solution provider of Process Control & Automation Instruments, from India. With 100+ products, Multispan products are used globally for a wide range of applications within control panels, switchgear, and related process control machinery.
Additional information
Additional information
| Brand | |
|---|---|
| Country of Origin | India |
| Primary Current | |
| Secondary Cuurent | |
| Burden(VA) | |
| Busbar Size | |
| Cable Size | |
| Accuracy Class | |
| Brand | |
| Mounting | Panel Mount |
| Product Type | Digital Panel Meters |
| Switchgear Category | Measurement Devices |
| Part Number | AVH 16 |
| rated-voltage | 230Vac |
