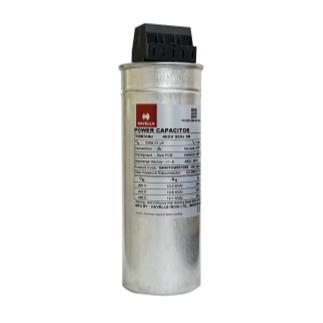

Power Factor Correction Capacitor 25KVAr 400V 3Phase – Havells Hercules QHNTCQ5025E0

Description

Power Factor Correction Capacitors 25KVar for Capacitor Banks

Havells Hercules Capacitor 25KVar 400V Normal Duty

General

• Hercules capacitors are MPP (metalized polypropylene) capacitors from Havells which have been used for PFC applications for more than 7 years The power range varies from 1.0 to 30.0 KVAr. The Hercules capacitor is used for power factor correction in industrial applications.


  Applications

•  Power Factor Correction (PFC)
• Automatic capacitor banks
• Fixed PFC applications, e.g. motor compensation
• Detuned PFC systems
• Dynamic PFC systems
• Filter Application

Features

• Compact design in cylindrical aluminum can with stud • Stacked winding • MPP technology

• Voltage range 400 … 525 V • Output range 1.0 … 30.0 KVAr Electrical

• Long life expectancy of up to 100000 hours • Max. transient inrush current handling capability is 200 x IR


Mechanical and maintenance

• Reduced mounting costs
• Easy installation and connection
• Low weight and compact volume
• Maintenance-free Safety
• Self-healing
• Overpressure disconnector
• Shock hazard protected optimized capacitor safety terminals above 6KVA
