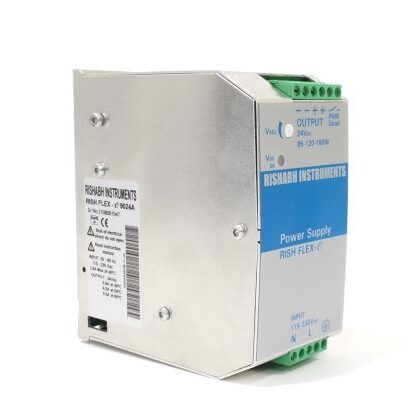

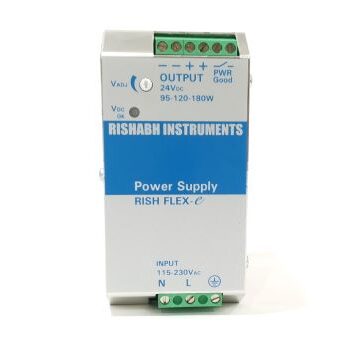

SMPS 24Vdc 5A 1Phase Primary Switched Power Supply Unit DIN Rail RISH Flex-e 9024A
AED 173.00 Incl. VAT
Technical Specifications
Input Voltage 115-230Vac
Rated Current 5A @ 40 °C; 4A @ 50 °C; 3A @ 60 °C
Output Voltage 24 VDC ± 3%
Internal Fuse T4 A
Power Boost current @ 600C 4.5 A
Turn ON delay 1.5s
Mounting DIN-Rail
Internal Fuse T4
External Fuse 10A ( MCB-B curve) recommended
- Description
- Datasheet and Operating Manual
- Additional information
- Reviews (0)
Description
Description
Rish Flex-e 9024A 5A Power Supply Unit DC 1Phase, Vin-115-230Vac
Primary switched Power Supply unit 24dc output Rish Flex-e 9024B by Rishabh Instruments
- Switched Mode Power Supply/ Primary Switched Power Supply
- Universal AC Input Range 187-550Vac/dc
- High Efficiency up to 87%
- Wide operating temperature range
- DIN rail mounting
- Strong overload withstand capability
- Adjustable output range
- Extremely small size
- 3-year warranty
Rishabh Instruments is a reputed control instrument Indian technology company, in 1985. It has a commendable global presence. The company acquired LUMEL, based in Poland, in 2010.
Rishabh Instruments PVT LTD. You can find more products such as relays and timers under the process control tab of GoSwitchgear, an online electrical store for UAE| Bahrain | Qatar | Kuwait | Oman | Saudi Arabia.
Datasheet and Operating Manual
Additional information
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10.5 × 5.5 × 11 cm |
| Mounting | DIN-rail |
| Primary Current | |
| Secondary Cuurent | |
| Part Number | Rish Flex-e 9024A |
| Product Type | Energy Management |
| Switchgear Category | Process Control |
