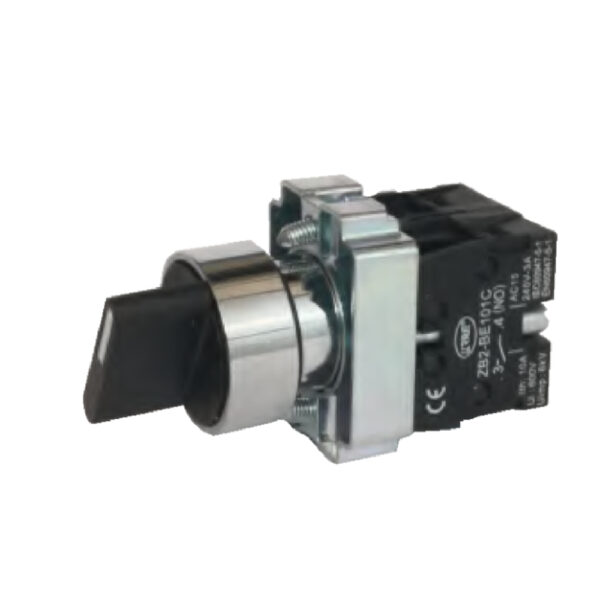

Selector Switch XB2-BD33 – 3 Position Metal Body 3A@240VAC | RRE

Description

Selector Switch XB2-BD33 – 3 Position Metal Body 3A@240VAC | RRE (CE Approved)

The XB2-BD33 is a CE-approved 3-position selector switch featuring a robust metal body, designed for reliable and durable operation in industrial and commercial environments. With a contact rating of 3A at 240VAC, this switch is ideal for applications requiring precise control and versatility.

Ideal Applications:

• Industrial control panels
• Electrical distribution boards
• Machine operation interfaces
• Control systems in commercial buildings
• Power management systems

Main Features:

• 3-Position Selector: Offers flexible control with three positions, providing more operational options than standard switches.
• Durable Metal Body: Constructed from high-quality metal for long-lasting durability, even in harsh industrial settings.
• Self-Locking Action: Equipped with a self-locking mechanism to ensure stable and secure operation.
• High Contact Rating: Designed to handle 3A at 240VAC, making it suitable for various control applications.
• Standard Mounting Size: Compatible with 22mm mounting dimensions, fitting easily into standard panels and enclosures.
• Reliable Performance: Features a contact resistance of 50mΩ max and insulation resistance of 100MΩ min, ensuring dependable operation.
• Dielectric Strength: Built to withstand up to 2000VAC, 50Hz for 1 minute, ensuring high electrical safety.
• Long Mechanical and Electrical Life: Engineered for 200,000 mechanical cycles and 50,000 electrical cycles, offering extended service life.
• IP40 Protection: Rated for IP40, providing protection against solid objects and ensuring reliable performance.
• Wide Operating Range: Performs effectively in temperatures ranging from -25 to 55℃ and humidity levels of 35 to 85% RH.
• Compliance and Certifications: CE certified and compliant with IEC947-5-1 and EN60947-5-1 standards, guaranteeing safety and quality.

Other Related Models:

• XB2-BD21: 2-position selector switch with a metal body.
• XB2-ED21: 2-position selector switch with a plastic body.
• XB2-ED33: 3-position selector switch with a plastic body.
