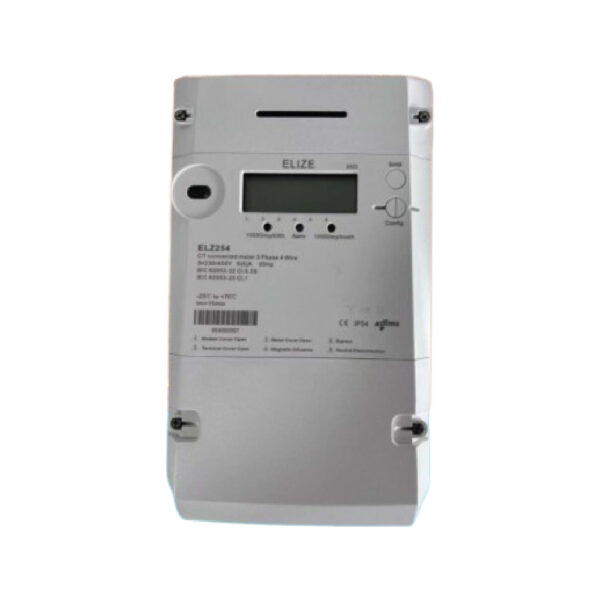

Three-phase smart energy meter Class 0.5S 50/60Hz | ELZ254 ELIZE (DEWA Approved)
AED 1,312.50 Incl. VAT
Connection type: 3-phase 4-wire, CT connected
Rated voltage: 3×240/415V
Current range: 5(10A) Max,
Accuracy Class: 0.5S
Frequency: 50 Hz/60HZ, ± 5%
Part Number: ELZ254
- Description
- Additional information
- Reviews (0)
- Datasheet
Description
Description
ELIZE ELZ254 Energy Tariff meter 3 phase DEWA approved
The ELIZE ELZ254 is a robust and advanced three-phase smart energy meter, fully approved by DEWA, designed to deliver precise energy measurements for various applications. With a wide range of features, it offers excellent performance, security, and flexibility, making it ideal for residential, commercial, and industrial environments.
Main Features:
- High Accuracy: Class 0.5S accuracy ensures precise measurement of active (kWh), reactive (kVarh), and apparent energy (kVAh), along with instantaneous parameters like voltage, current, and power factor.
- Wide Operating Range: Operates efficiently in temperatures ranging from -40°C to +80°C, with a storage range of -40°C to +85°C.
- Low Power Consumption: Efficient power usage with voltage circuit consumption of 1.5W/3VA and circuit power consumption of 0.3VA (without module).
- Advanced Event Logging: Stores at least 100 event records, including standard, tamper, and power events, customizable to suit specific needs.
- Reliable Storage: Equipped with Non-Volatile Memory (NVM) that retains data for at least 15 years.
- Type Testing Compliance: Fully compliant with IEC 62052-11, IEC 62053-21, IEC 62053-22, and IEC 62053-23 standards, ensuring reliable performance and safety.
- Secure Communication: Supports DLMS suite O/suite 1/LLS for secure data transmission, with multiple communication interfaces including Optical, RS485, P1, M-Bus, RS232, GPRS/3G/4G, PLC, Bluetooth, Ethernet, and NB-IoT.
- Prepayment Function: Optional prepayment capability for easy energy management and billing.
- Mechanical Durability: Built with a polycarbonate meter case, IP54 enclosure protection, and designed to meet BS and DIN standards.
- Versatile Display: Features a clear LED & LCD display for easy reading of energy consumption, with multiple display modes including automatic, button-activated, power-down, and test mode.
- Extensive Tariff Management: Supports up to 8 tariffs, 10 daily time spans, 12 day schedules, 12 week schedules, 12 season schedules, and 100 configurable holidays.
- Flexible Wiring: Accommodates various connection types and wiring cross-sectional areas, ensuring compatibility with different setups.
- Real-Time Clock (RTC): Features a clock accuracy of ±0.5s/day at 23°C, with configurable daylight saving time and a replaceable battery, ensuring accurate timekeeping for up to 15 years.
Where to Use:
- Residential Complexes: Ideal for individual apartment billing and energy management.
- Commercial Buildings: Perfect for monitoring and managing energy consumption across multiple businesses.
- Industrial Facilities: Ensures accurate energy tracking and management in heavy-duty environments.
- Renewable Energy Systems: Compatible with solar and other renewable energy installations.
DEWA Approved:
- Dubai Compliance: Fully approved by Dubai Electricity and Water Authority (DEWA), ensuring it meets all local regulatory requirements.
The ELIZE ELZ254 is a top-tier choice for anyone needing a dependable, feature-rich energy meter for three-phase systems, offering unmatched accuracy, security, and flexibility.
Additional information
Additional information
Brand | |
---|---|
Part Number | ELZ254 |
Primary Current | |
Secondary Cuurent | |
Burden(VA) | |
Busbar Size | |
Cable Size | |
Accuracy Class | |
Product Type | Energy Meter |
Switchgear Category | Measuring & Testing |
