Wire Connectors for Downlights & LED Strips: A UAE Fit-Out Guide (2026)

Every villa retrofit in Springs. Every restaurant fit-out on Sheikh Zayed Road. Every office refresh in JLT. They all end the same way: someone crouched above a false ceiling, sixteen downlights and thirty metres of LED strip to wire, and a bag of connectors on the floor. The wrong connector choice here is the difference between a two-hour job and a five-hour job, or worse — a callback three months later because a driver crapped out and nobody can find the joint.

This is the piece we wrote for lighting-fit-out contractors and interior installers, not the panel-builder crowd. Which KableKonnect PCT connector goes where in a lighting install, and why the SPL deconcentrator range exists at all.

The four lighting jobs — and the right connector for each

Nearly every lighting install decomposes into four kinds of connection. Get the right connector for each and the whole job stays clean:

1. Downlight chain — one feed, sequential loop-through

Feed comes in from the switch or DB. Every downlight in the chain gets a live, neutral and earth tap. The classic install is loop-in, loop-out: the incoming cable lands at fixture one, a short tail runs to fixture two, and so on.

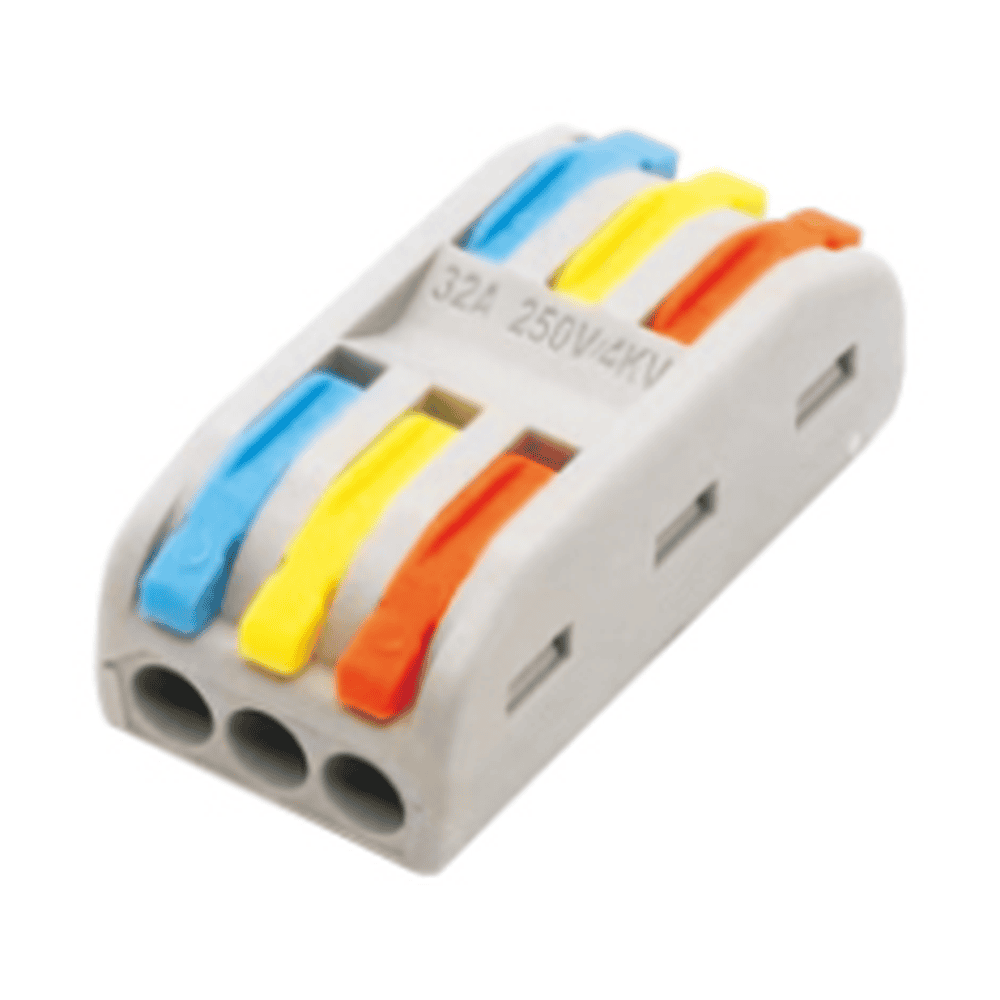

Best connector: in-line pass-through with colour-coded levers. The PCT-2-3C (3-in / 3-out) is the workhorse — six ports, colour-matched blue/brown/green-yellow to phase/neutral/earth. Wires from the incoming feed enter one side, the outgoing tap-off exits the other, and the downlight tail goes to the fitting. No wire nuts, no twisted joints. Reusable if the fixture ever gets swapped.

For chains longer than five or six fixtures, use the PCT-2-5C at the head of the run so you can fan out to multiple tails without cascading. See our WAGO 221 vs 222 comparison for the theory behind why the in-line format wins here.

2. Multiple downlights from a single 240 V feed — the deconcentrator play

When the ceiling plan calls for a cluster of downlights — say, six fixtures in a bedroom or eight over a dining area — and all of them are wired back to a single feed point at the ceiling void, chaining through each fixture wastes cable and creates a mess. The correct answer here is a deconcentrator: one incoming pair splits cleanly into 4, 6 or 9 outgoing pairs in a single connector body.

KableKonnect's SPL series covers this exclusively — WAGO doesn't make a direct equivalent, which is why we brought it in:

• PCT-SPL-42 — 2-in / 4-out (up to 4 downlights from one feed)
• PCT-SPL-62 — 2-in / 6-out (up to 6 downlights)

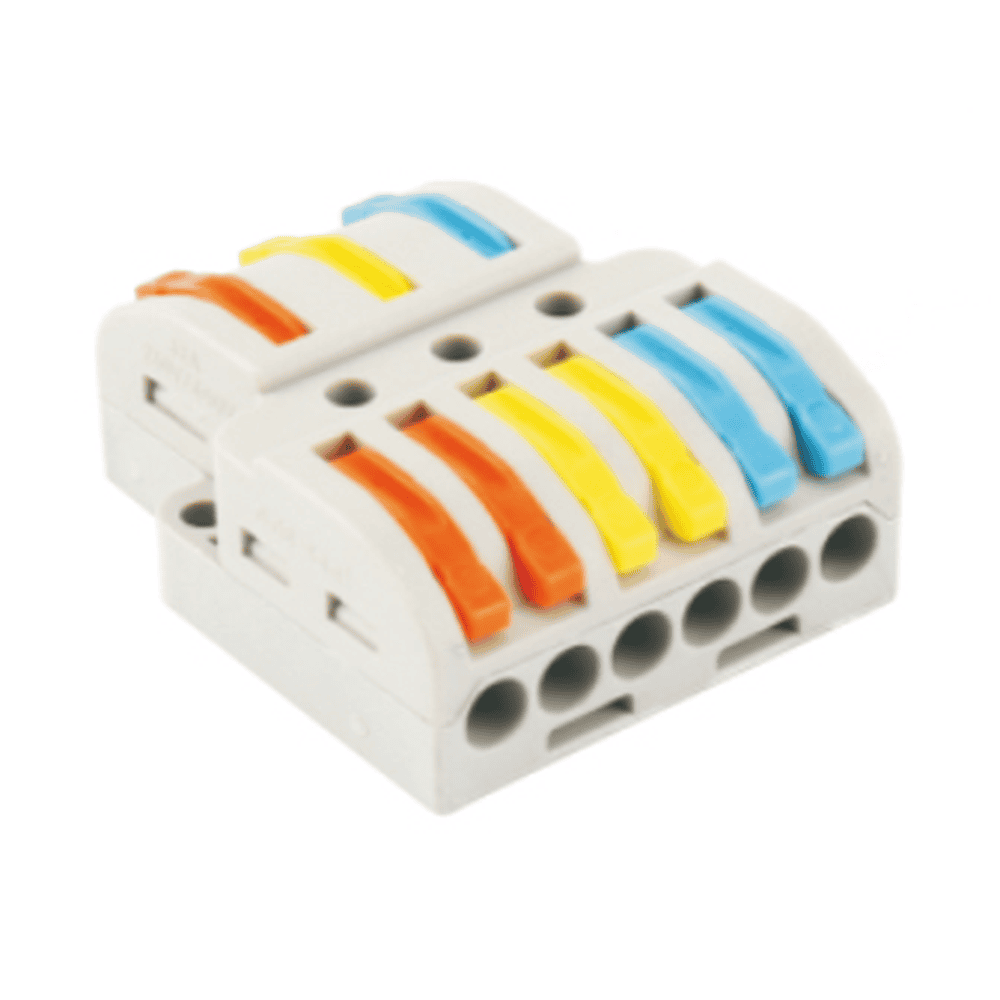

• PCT-SPL-63 — 3-in / 6-out (6 downlights, with earth handled cleanly)
• PCT-SPL-93 — 3-in / 9-out (9 downlights, the largest in the range)

One connector, one tidy junction, sits in the ceiling void or in a small back-box near the feed point. The wiring is fast because you're not looping through every fixture — each downlight gets its own short drop from the deconcentrator. If a fixture dies later, you swap it without disturbing the rest of the chain.

Rated 250 V, 32 A, 4 mm² deconcentrator connectors — plenty of headroom for LED downlights that individually draw well under an amp.

3. LED strip runs — driver output distribution

Cove lighting, under-cabinet strips, architectural profiles running the length of a hallway — LED strip installs almost always have a 12 V or 24 V driver at one end and multiple strip segments radiating outward. The strips can be a single continuous run, or (more commonly) several parallel segments so each keeps within the driver's per-run current limit.

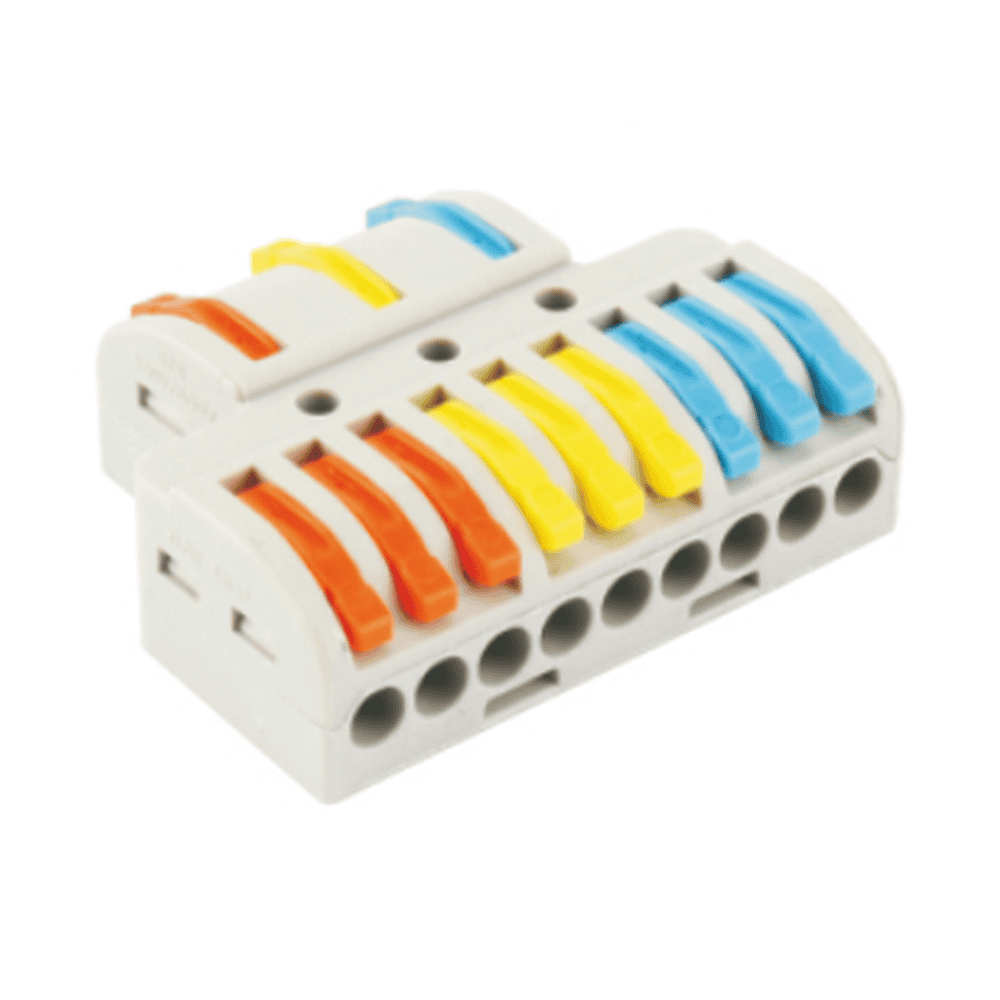

The SPL series does this job too, at low voltage. A 24 V, 120 W driver feeds a PCT-SPL-93 (3-in / 9-out), and from there up to nine independent strip runs are driven off the single supply. Each strip drops off with its own pair, colour-matched to positive/negative if you use the colour variant on the mains side (the SPL body itself is single-colour). Neat, reversible, no wire-nut spaghetti.

For smaller LED work — under-cabinet, mirror trim, single-fixture drivers — the PCT-SPL-42 at 2-in / 4-out is the right size. A quick joint at the driver, no need to bring out a full 9-way body.

4. Ceiling rose or single-point splice

Traditional pendant fixture or ceiling rose that needs a splice: incoming live from the switch, neutral, earth — all joining at one point above the fitting. Not a chain, not a distribution, just a junction.

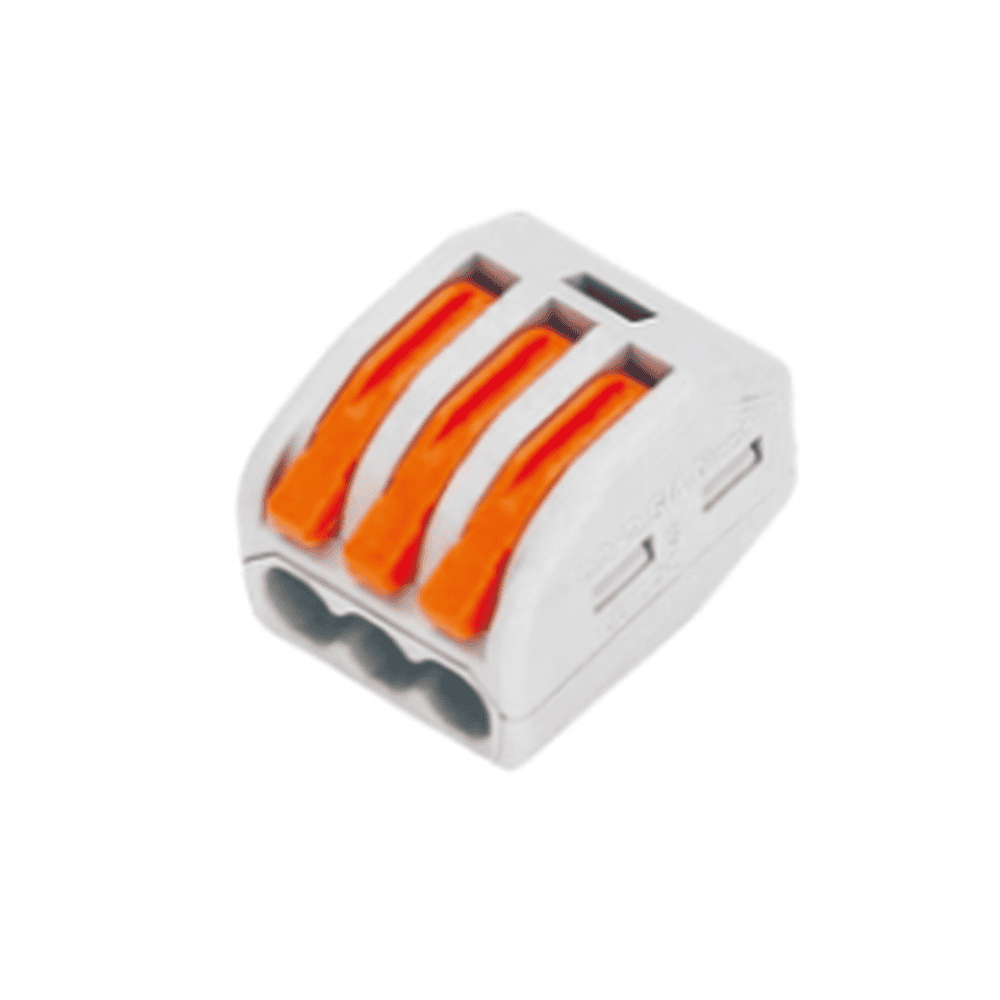

Reach for a same-side lever splicing connector. The PCT-213 (3-way) covers most single-fixture roses. For a two-fixture split from one incoming (chandelier plus wall sconce off the same feed), a PCT-215 5-way gives you the port count. Tuck the connector body into the rose or the fitting canopy and the whole splice disappears out of sight.

Voltage matters — where the 41-series comes in

Standard UAE domestic and commercial lighting runs at 240 V single-phase, and the 21-series and 2-series connectors (250 V rated) are comfortable there. Where you step up is 3-phase lighting circuits in commercial installs — 415 V phase-to-phase — or specialist high-voltage control wiring inside industrial luminaires.

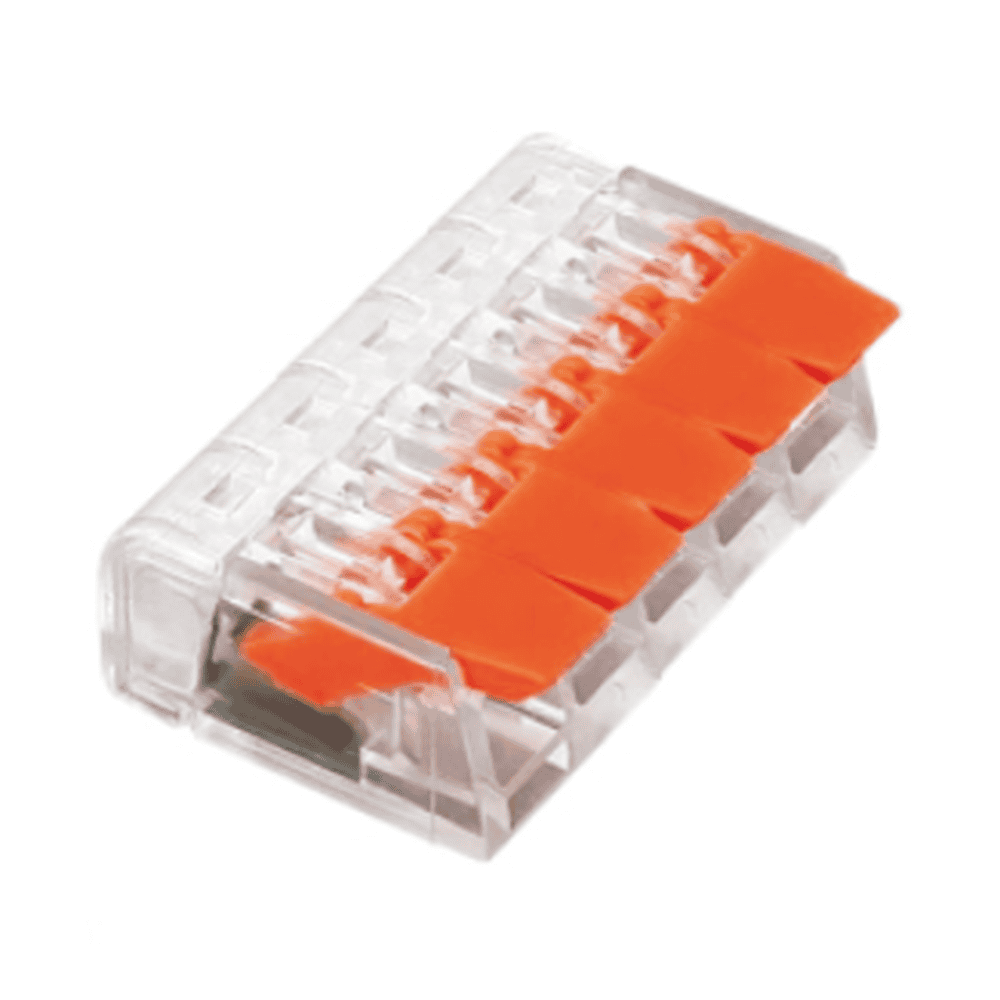

For anything above 250 V, use the 41-series. The PCT-412 through PCT-415 are rated 450 V, 32 A, and use a PC housing (higher dielectric strength than the PA66 of the 21-series). Only reach for these when the specification genuinely requires the higher voltage — for straight domestic lighting the 21-series is fine and cheaper.

Driver quality, connector quality, and the callback problem

A lot of the LED-lighting callbacks we hear about in the UAE come down to the same fault: a cheap driver has died after 6 to 18 months, the client wants it swapped, and the installer discovers he can't find the original driver in the ceiling void because it was wire-nutted into a nest of tape and heat-shrink. The whole ceiling has to come down to trace the fault.

Two habits kill this problem:

First: put every driver in a labelled junction box or a small back-box, with the mains input on one side of an in-line lever connector (PCT-2-2 or PCT-2-2C) and the DC output on the other. When the driver dies, unclip both levers, pull the driver out, drop the replacement in, done. Fifteen-minute job instead of a two-hour hunt.

Second: at every deconcentrator or splitter, snap a photo of the connection layout on your phone before you close up the ceiling. Six months later when the client calls about "one downlight not working", you can zoom in on the photo and know exactly which drop is which without opening anything up.

What a typical UAE lighting install uses

Rough consumption we've seen from repeat lighting-specialist accounts:

• 2-bedroom apartment refresh — 15–25 downlights, 1–2 LED strip runs. Uses roughly 8× PCT-2-3C, 4× PCT-213, 2× PCT-SPL-42, 1× PCT-SPL-62.
• Villa full lighting install — 60–120 downlights, 8–15 LED strip runs across coves and under-cabinet. Roughly 25× PCT-2-3C, 8× PCT-215, 4× PCT-SPL-63, 2× PCT-SPL-93, plus scatter across other formats.
• Retail fit-out — 40–80 track and downlight positions, typically driver-fed clusters. Roughly 6–10× PCT-SPL-63 or PCT-SPL-93 at driver junctions, 20× PCT-2-3C at track splits.
• Restaurant / F&B fit-out — mixed 240 V downlights and 24 V strip. Ratio flips more toward SPL series (driver distribution) and away from lever chains.

The pattern that repeats: colour-coded inline for chains, SPL deconcentrator at every driver or feed cluster, 3-way lever for individual fixture splices. Nine SKUs cover most of the work.

FAQ

Can I use a WAGO 221 for a downlight chain?

You can, but it's the wrong tool. A 221 is same-side splicing — all wires enter one face. For a chain where you're passing wires through (loop-in, loop-out) the 222 form is correct. See the full 221 vs 222 comparison for the mechanics.

What does deconcentrator mean and why isn't there a WAGO equivalent?

Deconcentrator (sometimes called "splitter" in the trade) is a connector that takes one or two incoming pairs and fans them out to multiple outgoing pairs in one body. WAGO doesn't make a direct equivalent in their consumer catalogue — their DIN-rail distribution blocks solve the same problem industrially, but at a much larger form factor and higher cost. The KableKonnect SPL series fills the gap specifically for lighting distribution in a ceiling void.

Are these connectors safe for 24 V LED strip installs?

Yes — rated for 250 V, so 24 V is well below the ceiling. Current rating (32 A for the SPL / lever series) is the more relevant number for LED work. A single strip run typically draws under 2 A; even a fully loaded driver rarely exceeds 10 A.

Can I mix solid and stranded LED strip tail wire in the same connector?

Yes in the lever series (21, 2, 2C, 223R, SPL) — cage-clamp handles both. Just make sure the strip's stranded tail is stripped clean to the marked length. If the strand count is very fine (some cheap Chinese strips), pre-tin the tip or use a ferrule.

What connector for 240 V downlight cluster in a bathroom (IP-rated area)?

The connector itself isn't IP-rated — it needs to sit inside an IP-rated back-box or fixture housing. Standard practice: use the SPL or PCT-2-3C as normal, inside the sealed enclosure that the fixture manufacturer supplies.

Do I need to derate for high ambient temperature in a ceiling void?

The 21/2/2C/SPL series is rated to 85 °C ambient. Most ceiling voids sit well below that. For genuinely hot environments — fixtures with poorly-vented drivers, or industrial luminaires above kitchen equipment — use the "H" variants (PCT-2-2H / PCT-2-3H) which use a higher-temperature housing.

Where can I buy KableKonnect SPL splitters in the UAE?

Directly from us — the full SPL range is stocked in our Dubai warehouse with next-day delivery across the UAE. See the product category page for pricing and the Panel Builder Sourcing Guide for trade terms.

Cheat sheet for the van

If you're a lighting installer and you carry a rolling stock of connectors in the van, this is the minimum kit:

• 50–100× PCT-2-3C — the everyday inline for downlight chains
• 25× PCT-2-5C — for heavier chains and multi-tap
• 30× PCT-213 — ceiling roses, small splices
• 20× PCT-215 — bigger single-point splices
• 10× PCT-SPL-42 — small driver splits, 4-way distribution
• 10× PCT-SPL-62 — medium distribution
• 5× PCT-SPL-93 — the big splitters, keep a few for bigger jobs

That's roughly 150 connectors — around AED 500 landed — and covers 90% of the connections on any residential or light-commercial lighting job.
